Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 30W PoE+ Media Converter
Mini Industrial SFP Gigabit Media Converter Overview

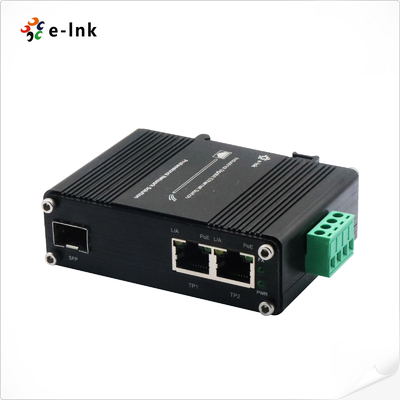

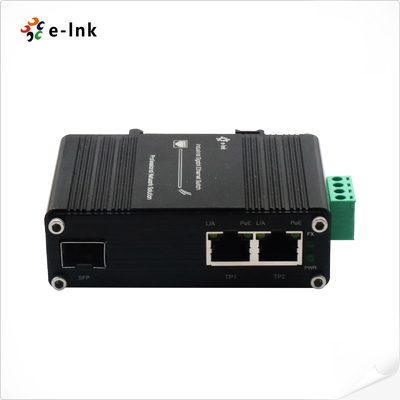

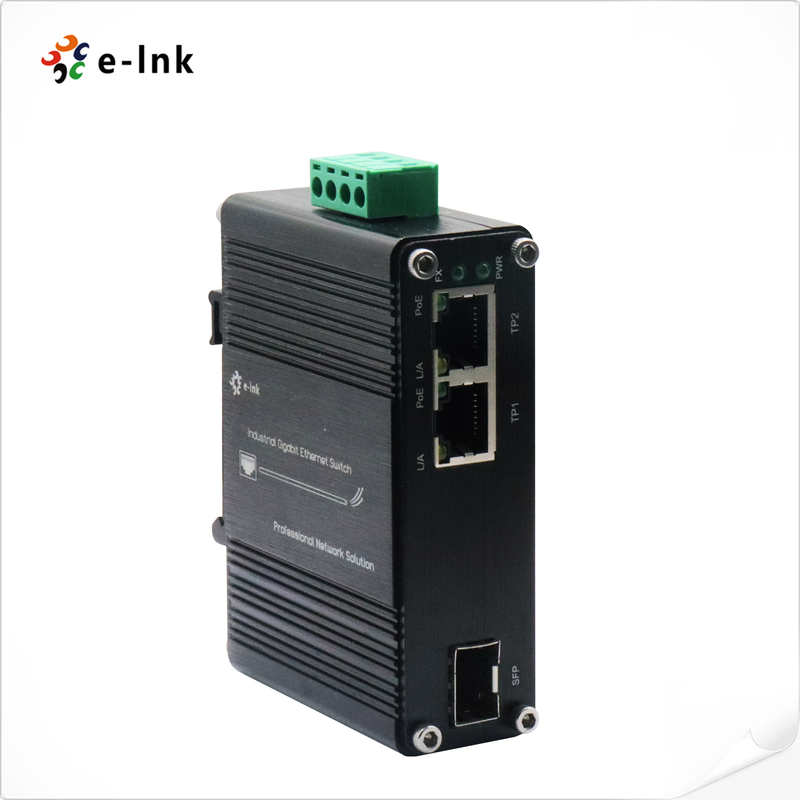

The LNK-IMC1200GP-SFP is an industrial-grade DIN rail media converter that bridges copper-to-fibre
networks while delivering high-power PoE+ (30W IEEE 802.3at). Engineered to withstand challenging
conditions, it functions in extreme temperatures (-40°C to +75°C) and adheres to EN55022 EMI standards.
The device is equipped with a 10/100/1000Base-T RJ-45 port (half/full duplex) and
a 100/1000Base-X SFP slot, facilitating flexible fibre connectivity with single/multi-mode SFP modules.
Its 30W Power over Ethernet (PoE) PSE (Power Sourcing Equipment) capability facilitates
the powering of remote devices, such as IP cameras, wireless access points,
and industrial Internet of Things (IoT) equipment, without the need for additional wiring.
This hardened converter is ideal for factory automation, transportation, and outdoor networks,
ensuring reliable data and power transmission in demanding conditions.
Mini Industrial SFP Gigabit Media Converter Features
LNK-IMC1200GP-SFP present the following features:
► 2 10/100/1000BASE-T RJ45 ports , support auto MDI/MDI-X function
► 1 SFP slot , supports 100Base-FX or 1000Base-X dual-mode optical modules (auto detection)
► Supports IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W) power supply standards
► With full/half duplex mode and auto-negotiation function to ensure network adaptability
► Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to reduce power consumption
► 12~48V DC terminal block power input to adapt to different power supply requirements

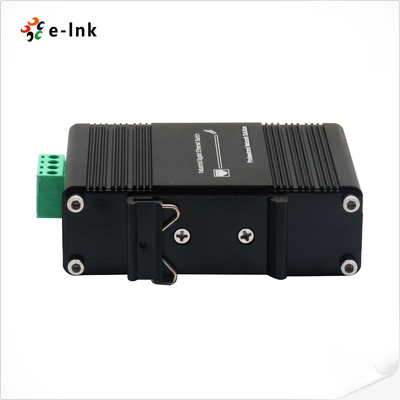

► Supports DIN rail and wall mounting for flexible deployment
► Industrial-grade wide temperature design : -40°C ~ 75°C (-40°F ~ 167°F), suitable for harsh environments
Mini Industrial SFP Gigabit Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Output Power
|
48VDC
|
|
Power Consumption:
|
65W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
POE:
|
PoE Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial SFP Gigabit Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200GP-SFP
|
Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with PoE+
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
Mini Industrial SFP Gigabit Media Converter Application
