DIN-Rail Ethernet over Coax Receiver with 4-Channel Input and PoC Function

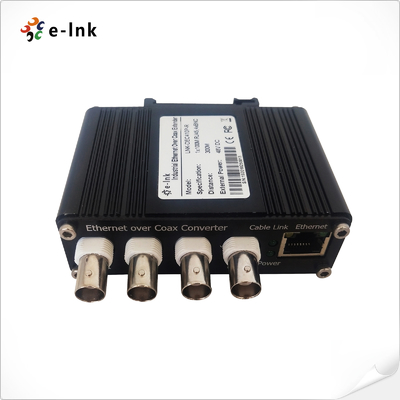

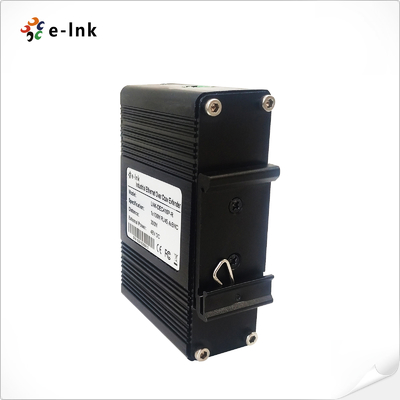

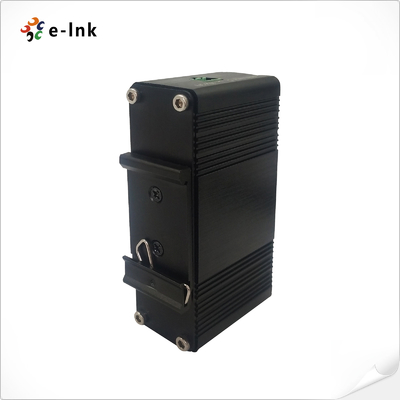

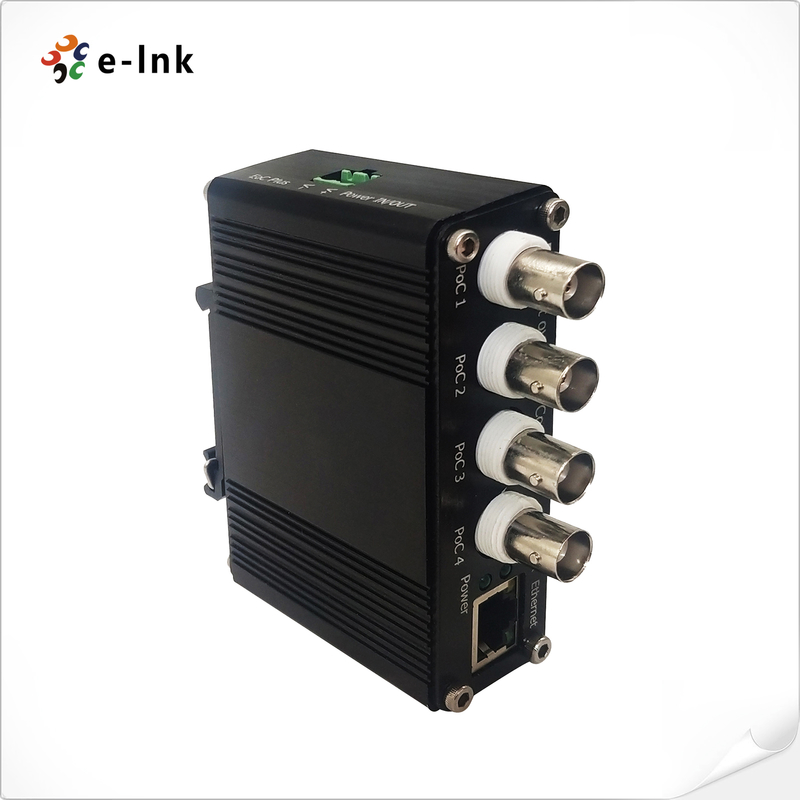

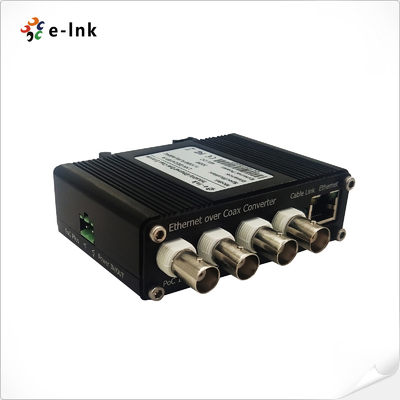

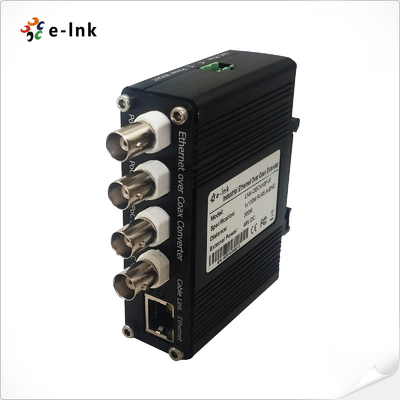

Large Image : DIN-Rail Ethernet over Coax Receiver with 4-Channel Input and PoC Function

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE FCC RoHS
Model Number:	LNK-DEC140P-R

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiated
Packaging Details:	Ethernet over Coax Receiver standard exxport package
Delivery Time:	3-10 working days
Payment Terms:	T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1000pair per mouth

Contact Now

Detailed Product Description

Input Power:	48-57VDC (2 Pin Connector)	Power Consumption:	10W Max. W/o PoC /250W Max. W/PoC
Coaxial Distance:	300m	Dimensions (W X D X H):	95 × 67 × 30 Mm
Weight:	0.5 Kg	Casing:	Aluminum Case
Highlight:	PoC Function Ethernet over Coax Receiver , DIN Rail Ethernet over Coax Receiver

DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC

Ethernet over Coax Receiver Overview

This DIN-rail EOC receiver, used in conjunction with the LNK-DEC110P-T transmitter, aggregates

four 10/100Base-TX Ethernet signals over coaxial cable to a single 10/100Mbps Ethernet port,

with a maximum transmission distance of 800 meters. Supporting PoC technology, it eliminates

the need for additional power at the transmitter or PoE-enabled IP camera. It's ideal for

upgrading analog surveillance systems to network-based systems using existing coaxial cables and

is widely used in CCTV system upgrades and remote network expansion.

Ethernet over Coax Receiver Features

Ethernet Extension: Security Link over Coax
Support DIN-Rail mount installation
Connecting up to 4 x LNK-DEC110P and IP Cameras
1000Mbps Full-duplex communication
Power over Coaxial
Data Rate up to (per port): 40Mbps (Downlink)/ 10Mbps (Uplink)
Max. Distance: 800m over Coax (RG59/U)
Auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables
External 48~57VDC power input
Wall mount installation

Ethernet over Coax Receiver Technical Indexes

Ethernet
Standards	IEEE802.3 10Base-T
Standards	IEEE802.3u 100Base-TX
Cabling	100Base-TX: Cat5 or above
Maximum Distance	Cat5UTP up to 100m
Connector	1 x RJ45
Coaxial
Cabling	Coaxial Cable (75 ohm)
Connector	4 BNC (female)
Distance	300m
Data Rate per port	40Mbps Max. (Downlink)
Data Rate per port	10Mbps Max. (Uplink)
Technology	Power Line Communication (PLC)
Protection
Reverse Polarity	Present
Overload Protection	Present
Electrical and Mechanical
Input Power	48-57VDC (2 pin connector)
Power Consumption	10W Max. w/o PoC
Power Consumption	250W Max. w/PoC
Dimensions (W x D x H)	95 × 67 × 30 mm
Weight	0.5 Kg
Casing	Aluminum case
Environmental
Operation Temperature	-10˚C to 60˚C (14˚F to 140˚F)
Storage Temperature	-40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity	5% to 90% non-condensing
MTBF	> 100,000 hrs
Regulatory Approvals	ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V
