Compact USB-C Ethernet Adaptor with Gigabit RJ-45 and Fiber Support

Multi Function PD Ethernet Switch with SFP port and Type-C output

Multi Function PD Ethernet Switch Overview

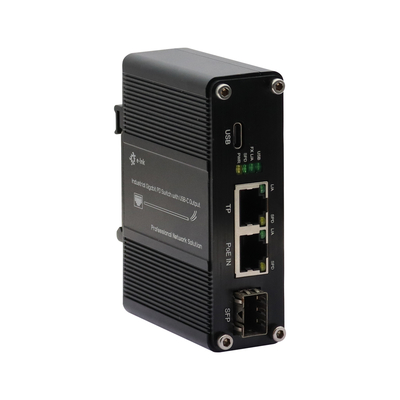

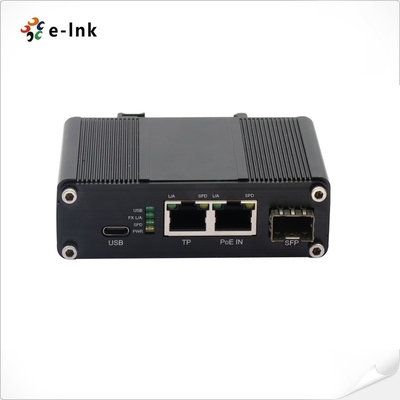

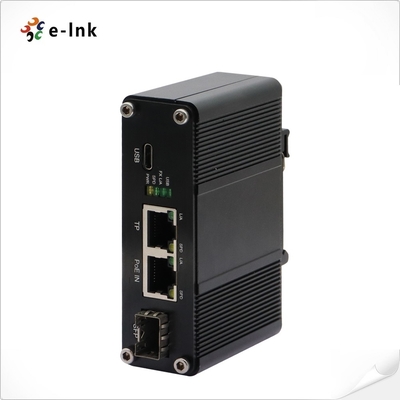

The LNK-GE-USB-PD Hybrid Interface Ethernet Adaptor facilitates seamless connectivity for

Type-C USB-powered devices to Ethernet networks via RJ-45 or fibre optic interfaces.

This adaptor features a Type-C USB 3.0 port, dual Gigabit RJ-45 ports (PoE IN supported),

and a self-adaptive SFP slot (100/1000M), delivering high-speed data transfer and flexible power options.

This product is compatible with Power over Ethernet (PoE), thus eliminating the need for

an external power supply. In addition, its USB Power Delivery (PD) support (5-20V/3A max)

ensures fast charging for laptops, tablets and smartphones. Its 35mm DIN rail or wall-mountable d

esign makes it ideal for industrial and office environments requiring reliable, long-distance network expansion.

Multi Function PD Ethernet Switch Features

• Supports standard protocols : USB 2.0/3.0, USB PD 2.0, IEEE 802.3 10Base-T

• / 100Base-TX / 1000Base-T, IEEE 802.3u 100Base-FX, IEEE 802.3z 1000Base-X,

• IEEE 802.3bt, IEEE 802.3at

• Enhanced compatibility : fully compatible with USB PD 3.0 fast charging protocol,

• ensuring efficient and safe power transmission

• Multiple interface configurations :

  • 1 × Type-C USB 3.0 port

  • 1× Gigabit (10/100/1000Mbps) universal RJ-45 interface

  • 1× Gigabit PoE PD type RJ-45 interface

  • 1× 100Base-FX / 1000Base-X adaptive fiber optic SFP slot

• Flexible installation : supports DIN rail and wall mounting

• Wide operating temperature range : adapt to -20°C ~ 50°C working environment

Multi Function PD Ethernet Switch Technical Indexes

Multi Function PD Ethernet Switch Ordering Information

Multi Function PD Ethernet Switch Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
