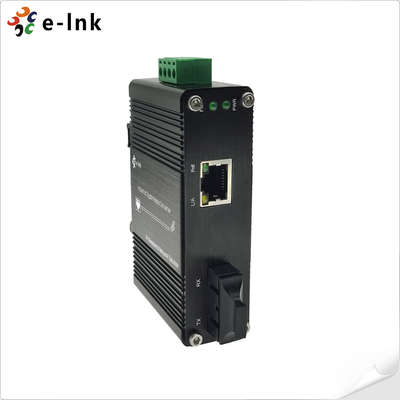

Compact Industrial PoE+ Fiber Media Converter 30W -40~75°C SC Port

Large Image : Compact Industrial PoE+ Fiber Media Converter 30W -40~75°C SC Port

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	The LNK-IMC3012P
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$65-$89
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Network Interface:	1×RJ45 (10/100/1000BASE-T, Auto MDI/MDI-X), 1×SC (1000BASE-X)	PoE Capability:	Up To 30W PoE+ Output (IEEE802.3at), Supports IEEE802.3af
Power Input:	12~48VDC, 2-pin Terminal Block	Power Consumption:	Max. 36W
Operating Temperature:	-40°C To 75°C	Mounting Options:	DIN-Rail / Wall-mount

Compact Industrial PoE+ Fiber Media Converter 30W -40~75°C SC Port

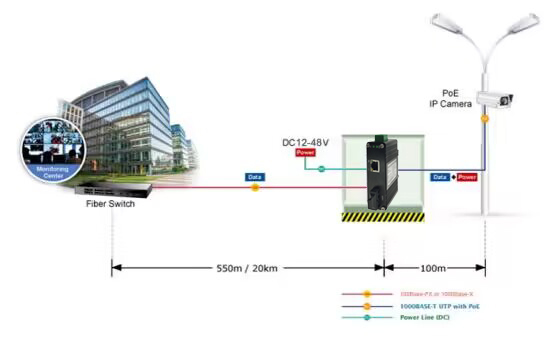

Overview

The LNK-IMC3012P Series is a compact, ruggedized industrial media converter designed to

bridge copper and fiber networks with high power PoE+ capability. Delivering up to 30W per

port, it ensures reliable data and power transmission for IP cameras, wireless APs, and other

PoE-enabled devices. With a hardened aluminum casing and wide temperature tolerance

from -40°C to 75°C, it’s built for challenging industrial and outdoor environments. Flexible

mounting options and compliance with IEEE standards make it ideal for transportation

systems, factory automation, and security networks.

Features

High Power PoE+ Output — Supports IEEE802.3at (30W) and IEEE802.3af (15.4W)

standards.

Versatile Media Conversion — Converts between 10/100/1000BASE-T and 1000BASE-X

fiber.

Rugged Industrial Design — Aluminum housing, wide temperature range (-40°C to 75°C).

Flexible Installation — DIN-Rail and wall-mount options included.

Energy Efficient — IEEE 802.3az compliant for reduced power consumption.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x 1000Base-X SC
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	36W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC3012P	Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3012P-2	Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC3012P-20	Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3012PS-20	Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
