4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability

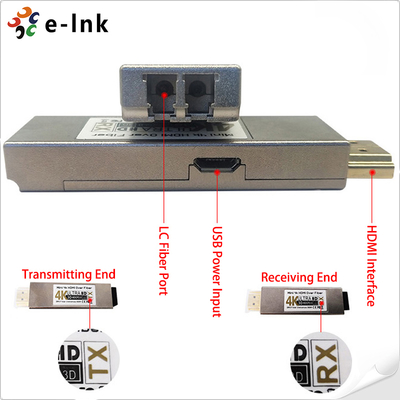

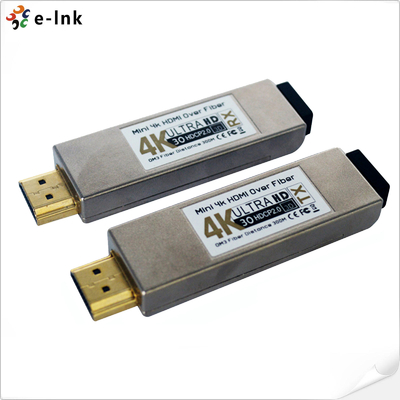

Large Image : 4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-106M
Document:	E-link LNK-106M Mini 4K HDM....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$129-$169
Packaging Details:	Fiber Optic Extender Standard express packaging
Delivery Time:	5-8 working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Resolution Support:	Up To 4Kx2K (3840x2160)	Transmission Distance:	Up To 300m (Multimode Fiber)
Wavelength:	850nm	Bandwidth:	10Gbps
Fiber Type:	Dual-core Multimode Optical Fiber	Applications:	Home Entertainment, Conference Systems, Digital Signage, Large-screen Display
Highlight:	4K UHD HDMI Optical Transceiver , Lossless Transmission HDMI Optical Transceiver , 4K UHD HDMI Optical Transceiver

4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability

Overview

The 4K HDMI Optical Transceiver is a compact HDMI-over-fiber solution that enables

uncompressed, lossless HDMI 1.4a signal transmission over multimode optical fiber.

Supporting distances up to 300 meters at 850nm wavelength, it delivers stunning 4Kx2K

resolution. The transmitter module (Tx) converts the HDMI signal into a 10Gbps optical

stream, while the receiver module (Rx) restores it to HDMI format. Engineered for

high-performance AV distribution, the transceivers are RoHS compliant, lead-free, and ideal

for large displays, conferencing systems, and home theaters. Its robust design ensures

strong anti-interference performance and stable signal delivery.

Features

Supports HDMI 1.4a standard with uncompressed and lossless transmission

Transmits 4Kx2K resolution over multimode fiber up to 300 meters

Operates over dual optical fibers at 850nm with 10Gbps bandwidth

Strong anti-interference performance for signal stability

Plug-and-play design with no software configuration required

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	Double LC Receptacle
Transmission Distance	Multi Mode, up to 984ft (300M)
Operating Temperature	0°C to + 50°C
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Ordering Information

Item	Description

LNK-106M	Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
