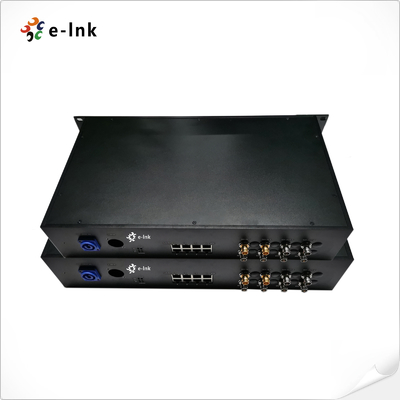

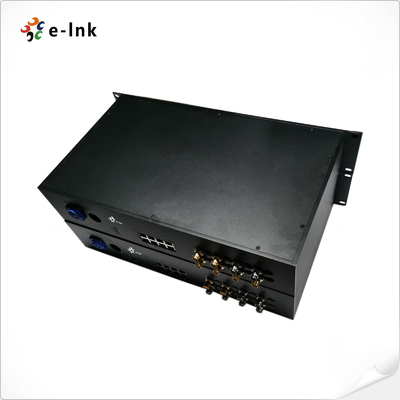

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
3G-SDI Fiber Optic Extender Overview
The LNK-3GSDI-6FV2BV8GP is a high-performance fibre-optic transmission system that combines
8 Gigabit PoE ports (802.3af/at), 6 forward 3G-SDI channels and 2 backward 3G-SDI channels over
a single fibre. It delivers uncompressed SDI (270 Mbps), HD-SDI (1.485 Gbps) and 3G-SDI (2.97 Gbps)
signals of broadcast-quality, which are immune to electromagnetic interference, ensuring ultra-reliable o
peration. Ideal for HD surveillance and live broadcasting, it extends transmission up to 20 km — far beyond
the capabilities of traditional coax systems. The auto-sensing PoE ports intelligently power compatible
devices and safely connect non-PoE equipment.
3G-SDI Fiber Optic Extender Features
- 8-Channel Gigabit PoE + 6-Channel Forward 3G-SDI + 2-Channel Backward
- 3G-SDI transmission over a single fiber
- Compatible with 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI standards
- Supports bandwidth from 19.4 Mb/s to 2.97 Gb/s
- SMPTE 424M (2.97 Gb/s) compliant clock recovery
- Fully supports major digital video transport standards: SMPTE 424M, SMPTE 292M,
- SMPTE 259M, and SMPTE 297M for 3G-SDI, HD-SDI, SD-SDI, and ASI formats respectively
- Integrated CWDM system with dedicated SFP modules for each transmission path
- Automatic cable equalization based on detected data rate
- LED indicators for real-time status monitoring of critical parameters
- Standard 19” 2U rackmount design for easy integration
3G-SDI Fiber Optic Extender Technical Indexes
|
Fiber Optical interface
|
|
Fiber interface
|
Simplex LC
|
|
Transmission distance
|
20Km
|
|
Wavelength
|
1310nm/1550nm
|
|
Video
|
|
Video interface
|
BNC
|
|
Video input/output impedance
|
75Ω
|
|
Video input/output voltage
|
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
|
|
Video Bits Rate
|
Max 3.2Gb/s
|
|
Differential gain (10%～90% APL)
|
<1%
|
|
Video SDI standard
|
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
|
|
SMPTE425M3Gb/s Mapping(3G-SDI)
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI)
|
|
Video Input
|
6 Channel 3G-SDI
|
|
Video Output
|
2 Channel 3G-SDI
|
|
Ethernet
|
|
Standards
|
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
|
|
Power over Ethernet
|
IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA
IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA
Power Pin Assignment: 4/5(+), 7/8(-)
|
|
Date Rate
|
10/100/1000Mpbs
|
|
Connector
|
8 x RJ45
|
|
Max. Power per Port
|
RJ45 Port 1 ~ Port 8 (30W Max per port)
|
|
Electrical
|
|
Power Input
|
200VAC to 240VAC
|
|
Power consumption
|
<15W
|
|
LED Indicator
|
|
PWR
|
Power Supply
|
|
SDI 1~8
|
3G-SDI Signal
|
|
ACT
|
RJ45 Ethernet Signal
|
|
LINK
|
Link Status
|
|
Mechanical
|
|
Size
|
19” 2U Rack
|
|
Weight
|
11.5KG/pair
|
|
Casing
|
Metal Case
|
|
Mounting Options
|
Rack-mount
|
|
Environmental
|
|
Working Temperature
|
-20℃～+70℃
|
|
Storage Temperature
|
-40℃～+80℃
|
|
Working Humidity
|
0~95%
|
3G/HD/SD-SDI Fiber Optic Extender Ordering Information
|
Model
|
Description
|
|
LNK-3GSDI-6FV2BV8GP
|
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender, Single Mode, Singel Fiber, 20KM, 19” 2U rack mount
|
3G/HD/SD-SDI Fiber Optic Extender Application
