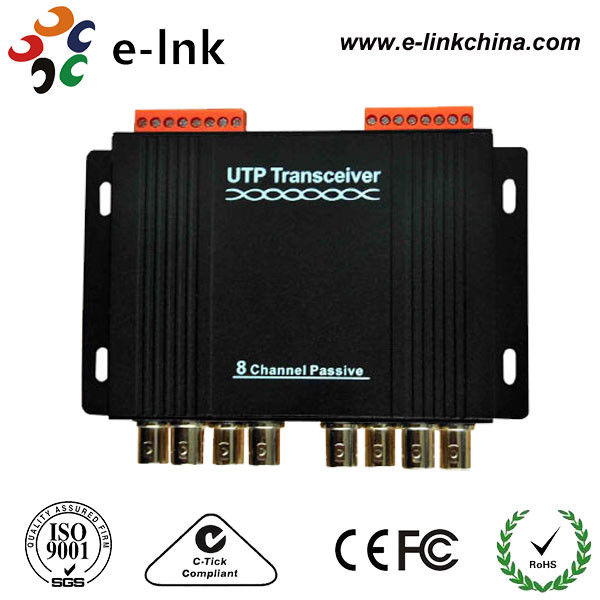

8 Channel Passive CCTV UTP Video Balun Transceiver Differential Signal Transmission

8 Channel Passive CCTV UTP Video Balun Transceiver Differential Signal Transmission
8 Channel Passive CCTV UTP Video Balun Transceiver Differential Signal Transmission 8 Channel Passive CCTV UTP Video Balun Transceiver Differential Signal Transmission 8 Channel Passive CCTV UTP Video Balun Transceiver Differential Signal Transmission

Large Image :  8 Channel Passive CCTV UTP Video Balun Transceiver Differential Signal Transmission

Product Details:
Place of Origin: Guangdong, China
Brand Name: E-link
Certification: CE/FCC/Rohs
Model Number: LNK-P8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 4-6 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs Per Month
Detailed Product Description
Video Format: PAL, NTSC, SECAM,CCIR Connector: Male BNC / RJ45 Port
Wire Type: UTP5/6 Video Channel: 8
Frequency Response: DC To 8MHz Power: 12-24VDC
High Light:

utp video transceiver

,

utp vga extender

8 Channel Passive CCTV UTP Video Balun Up to 330m



Model: LNK-P8

Overview



The 8-Ch passive UTP video receiver receives balanced signal and converts it into unbalanced signal and raises the received signal with perfect receiving effect, which can be applied in occasions such as Video Monitoring and video meeting. It can simplify the wiring project and save the wire used.



Features

  • Transmit 8 channel of video signals
  • Adopt differential signal transmission with excellent anti-interference ability
  • Save wire expenses, each pair of twisted pair wire transmits One Channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
  • The farthest transmission distance will be 1000m if used with active transceiver and the farthest transmission distance can reach 330m if it is used with passive transmitter
  • Outstanding interference rejection, transient protection
  • No power is needed



Technical Indexes



Video Format NTSC, PAL, SECAM
Frequency Response DC to 8MHz
Attenuation 0.5dB typ
CMRR 60 dB
Impedance Coax, Male BNC 75 ohms
Terminal Block 100 ohms
Working Temperature -10℃ to +70℃
Storage Temperature -30℃ to +70℃
Humidity 0 to 95%
Wire Type UTP5
Connector Female BNC and terminal Block
Power 12-24VDC
Case aluminium alloy

Type of the required wire

Characteristic impedance

Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
Transmission distance 330m
Weight 270g



Application
