High Speed Analog Digital Video Converter Multiplexer , 4 Channel Analog Multiplexer

China High Speed Analog Digital Video Converter Multiplexer , 4 Channel Analog Multiplexer supplier

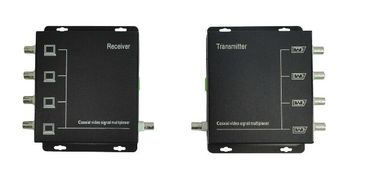

Large Image :  High Speed Analog Digital Video Converter Multiplexer , 4 Channel Analog Multiplexer

Product Details:

Place of Origin: Shenzhen, China
Brand Name: E-link China
Certification: CE, RoHS, FCC
Model Number: LNK-MV401

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: 1 pair in 1 carton box
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000000000pairs/Month
Contact Now
Detailed Product Description
Signal Bandwidth: 8MHZ Power Supply: DC12V/1A
Signal Output Amplitude: 0.9-1.1VPP Output Polarity: Positive
Output Impedance: 75(Unbalanced) Video Interface: BNC

4-Channel Video with RS485 PTZ Data by Coaxial Cable Analog Video Multiplexer

Model: LNK-MV Series

Overview

E-link LNK-MV series video multiplexer bound the 2~6-ch video signal of the camera and the control signal of rs485 reverse controller in one coaxial cables transmission. The Video Multiplexer is composed of a Transmitter and a Receiver. From the receiver to the transmitter, it transmits 2~6 channel video signals through one coaxial cable to long distance. Besides, as you don’t need to install extra cable for data signals, you can save your money and time.





Features

  • 2-6Channel video signal for camera over 1 coaxial cable
  • Designed according to projects with minimum installation volume requirement
  • Long distance transmission up to 500m
  • Frequency Division Multiplexing, with all video and data transmission real-time and all images high-definition and non-delay.
  • Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,
  • One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)
  • Maintaining high quality video & anti-interference immunity
  • Easy installation with BNC harness





Technical Indexes

Transmitter
  VIDEO 1 VIDEO 2 VIDEO 3 VIDEO 4 VIDEO 5 VIDEO 6
Central Frequency   46MHZ 38MHZ 30MHZ 30MHZ 30MHZ
Signal Output Intensity 105db 105db 103db 102db 102db 102db
Video Input Impedance 75 Ohm (Unbalanced)
Video Input Amplitude 0.8-1.5VPP
Video Compatible Format PAL, NTSC
Video Interface BNC
Signal Bandwidth 8MHZ
Power Supply DC12V/1A
Receiver
Signal Output Amplitude 0.9-1.1VPP
Output Polarity Positive
Output Impedance 75(Unbalanced)
Video Interface BNC
Power Supply DC12V/1A
RS485 Output Parameter(Switch with VIDEO 1)
Quantity of Node Supported 10
Baud Rate 300-57600bps
Interface Double terminal block
Dimension 158*124*39mm







Ordering Information

LNK-MV201 2-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV301 3-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV401 4-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV501 5-Ch video converter transmitter and receiver for camera by one coaxial cable
LNK-MV601 6-Ch video converter transmitter and receiver for camera by one coaxial cable
