90 Watt Industrial Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T

China 90 Watt Industrial Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T supplier
90 Watt Industrial Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T supplier 90 Watt Industrial Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T supplier 90 Watt Industrial Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T supplier 90 Watt Industrial Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T supplier

Large Image :  90 Watt Industrial Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T

Product Details:

Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC1200GP90-SFP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 4
Payment Terms: L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 1000
Contact Now
Detailed Product Description
Connector: 2 X RJ45 Optical Port: 1 X SFP 1000Base-X Or 100Base-FX (auto Detection)
Nput Power: 48~57VDC, 2-pin Terminal Block Power Consumption: 185W Max.
Dimensions (WxDxH): 96 X 80 X 31 Mm Weight: 0.25Kg
Casing: Aluminum Case Mounting Options: DIN-Rail / Wall-mount

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter

Features



►2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
►1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
►Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
►Supports Link Fault Pass Through
►Supports Full/Half-duplex, Auto-negotiation
►9K Bytes Jumbo Frame
►48~57VDC Terminal Block Power Input
►Supports DIN-Rail & Wall-mount installation
Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature



Overview

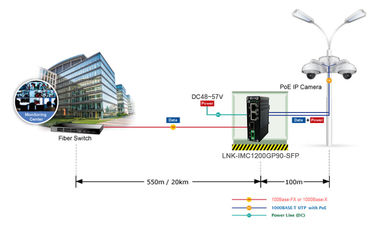

LNK-IMC1200GP90-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.



Technical Indexes



Ethernet
Standards: IEEE802.3 10Base-T
  IEEE802.3u 100Base-TX/FX
  IEEE802.3ab 1000Base-T
  IEEE802.3z 1000Base-X
  IEEE802.3af Power over Ethernet
  IEEE802.3at Power over Ethernet
  IEEE802.3bt Power over Ethernet
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
  148,800pps (100Mbps)
  1,488,000pps (1000Mbps)
Packet Buffer Memory: 1 Mbit
Max Packet Length: 9K Bytes
Address Table Size 2048K MAC Addresses
Interface
Connector: 2 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power: 48~57VDC, 2-pin terminal block
Power Consumption: 185W Max.
LED Indicators:
PWR: Power Status
PoE: PD Plug Status
RJ45: LINK/Activity
SFP: LINK
Dimensions (WxDxH): 96 x 80 x 31 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)



Ordering Information



Model Description
LNK-IMC1200GP90-SFP Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
  ► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
  ► Power Supply is to be purchased separately.
