Entry level Ethernet POE Switch 4 x 10/100/1000Base - T(x) + 2 x 1000Base - FX

China Entry level Ethernet POE Switch 4 x 10/100/1000Base - T(x) + 2 x 1000Base - FX supplier
Entry level Ethernet POE Switch 4 x 10/100/1000Base - T(x) + 2 x 1000Base - FX supplier Entry level Ethernet POE Switch 4 x 10/100/1000Base - T(x) + 2 x 1000Base - FX supplier Entry level Ethernet POE Switch 4 x 10/100/1000Base - T(x) + 2 x 1000Base - FX supplier

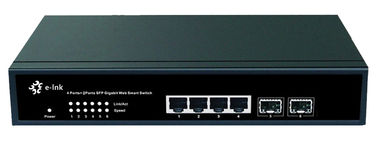

Large Image :  Entry level Ethernet POE Switch 4 x 10/100/1000Base - T(x) + 2 x 1000Base - FX

Product Details:

Place of Origin: China
Brand Name: E-link
Certification: CE ,RoHS,FCC
Model Number: LNK-AF2400G Series

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export Package
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs /month
Contact Now
Detailed Product Description
RJ45 Ports: 10/100/1000M Input Power: 110~220VDC /100~240VAC
Input Current: 0.25A(@110VAC/VDC) Operating Temperature: -20~60℃ (wide Temperature Optional)
W×H×D: 185mm*134mm*35mm POE: Optional
Warranty: 5 Years Port: RJ45 Port 1 ~ Port 4



Entry level Ethernet POE Switch 4 x 10/100/1000Base - T(x) + 2 x 1000Base - FX

Overview



LNK-AF2400G Series is an entry-level 6-port Ethernet switches which supports 4 10/100/1000Base-T(x) + 2 1000Base-FX interfaces.



No fan, low consumption and industrial grade design. More steadily work capability. LNK-AF2400G is rated to operate at temperatures ranging from -20 to 60°C, and undergoes a 100% burn-in test to ensure that they fulfill the special needs of outdoor environment.



Technical Indexes



Technology
Standard IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-X, IEEE802.1d Spanning Tree, IEEE802.3af Power over Ethernet, IEEE802.3at Power over Ethernet
Flow control IEEE802.3x
MAC address  8K
Interface
RJ45 Ports 10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports 1000Base-FX ports (SC/ST/SFP optional)
LED indicator PWR, SYS, Link/ACT
Power
Input power 110~220VDC(100~300VDC)Or100~240VAC(85~264VAC)
Input current 0.25A(@110VAC/VDC)
Connector 3 bits terminal block
PoE (Optional):
Port RJ45 Port 1 ~ Port 4
Standard IEEE802.3af, IEEE802.3at
Max. Power per Port 30W Max per port
Environmental
Operating Temperature -20~60℃ (wide temperature optional)
Storage Temperature -40~85℃
Relative Humidity 5%~95%(non-condensing)
Mechanical
Shell IP30protection, metal case
Installation desktop
W×H×D 185mm*134mm*35mm
Approvals
EMI FCC Part 15,CISPR(EN55022)class
EMS

EN61000-4-2(ESD), Level 3

EN61000-4-3(RS), Level 3

EN61000-4-4(EFT), Level 3

EN61000-4-5(Surge), Level 3

EN61000-4-6(CS), Level 3

EN61000-4-8, 100A/m

EN61000-4-12

Shock IEC 60068-2-27
Free Fall IEC 60068-2-32
Vibration IEC 60068-2-6
After-sales service
Warranty 5 years



Features



l Support 4pcs RJ45 ports and 2pcs fiber ports (SC or SFP)

l Support IEEE802.3/802.3u/802.3x

l Broadcast storm protection

l DC110~220V or AC100~240V 3 bits terminal block power input

l Plug and Play configuration

l Supports 9.6 KB jumbo frames

l Broadcast storm protection

l Support store and forward transmission

l Support back pressure flow control

l No fan, low consumption, EMC-4 grade design

l All port anti-lighting (6KV)

l 3KV isolation protection

l IP30 protection, metal shell

l PoE/PoE+(IEE802.3af/at) optional

Ordering Information

Model Description

Non-PoE Ethernet Switch
LNK-AF2400G-SFP Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SFP Slot, excl. SFP module, standalone,AC100~240V Built-in Power Supply
LNK-AF2400G Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SC Fiber Port, Multimode, 550m, standalone,AC100~240V Built-in Power Supply
LNK-AF2400G-20 Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SC Fiber Port, Single Mode, 20km, standalone, AC100~240V Built-in Power Supply

 PoE Ethernet Switch


LNK-AF2400GPF-SFP Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SFP Slot, excl. SFP module, standalone, IEEE802.3af PoE Standard, 15.4W, AC100~240V Built-in Power Supply
LNK-AF2400GPT-SFP Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SFP Slot, excl. SFP module, IEEE802.3at PoE Standard, 25.5W, standalone,AC100~240V Built-in Power Supply
LNK-AF2400GPF Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SC Fiber Port, Multimode, 550m, IEEE802.3af PoE Standard, 15.4W, standalone, AC100~240V Built-in Power Supply
LNK-AF2400GPT Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SC Fiber Port, Multimode, 550m, IEEE802.3at PoE Standard, 25.5W, standalone, AC100~240V Built-in Power Supply
LNK-AF2400GPF-20 Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SC Fiber Port, Single Mode, 20km, IEEE802.3af PoE Standard, 15.4W, standalone, AC100~240V Built-in Power Supply
LNK-AF2400GPT-20 Entry-level Indutrial Ethernet Switch: 4 x 10/100/1000Base-T(x) + 2 x 1000Base-FX, SC Fiber Port, Single Mode, 20km, IEEE802.3at PoE Standard, 25.5W, standalone, AC100~240V Built-in Power Supply
