Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM

China Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM supplier
Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM supplier Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM supplier Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM supplier Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM supplier

Large Image :  Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM

Product Details:

Place of Origin: Guangdong
Brand Name: E-link
Certification: CE FCC RoHS
Model Number: LNK-M12G-1V1T-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: US$339-359/pair
Packaging Details: Standard export package
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T, PayPal
Supply Ability: 1000pcs/Month
Contact Now
Detailed Product Description
Item Name: Mini Converter Optical Fiber 12G-SDI

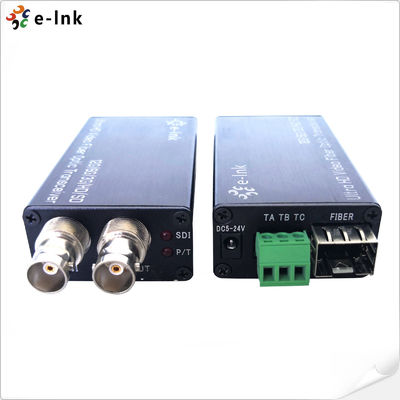

Mini Converter Optical Fiber 12G-SDI with Tally and loop out

Single Mode Fiber LC Connector 20KM



Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM

Model: LNK-M12G-1V Series



Overview

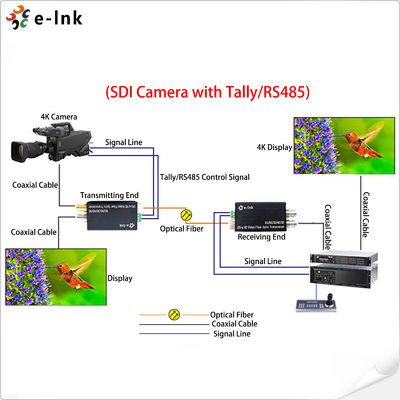

LNK-M12G-1V Series Mini-type 12G-SDI Fiber Converter supports 1-channel 12G Video (audio embedded) & Tally signal(or Backward RS485) transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.







Features

  • 1 channel 12G-SDI video & Tally (or Backward RS485) over optic fiber
  • Each SDI channel includes 8-channel audio embedded
  • SDI Input/LC Fiber Output/SDI Loop
  • Automatic cable equalization to ensure signal integrity
  • Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
  • Compatible With DVB-ASI and AES10 (MADI)
  • Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
  • Directly compatible with 12G/6G/3G-SDI camera systems
  • Long transmission capability at least 10 km (6.2miles) , up to 80 km
  • Terminal block power input for industrial application
  • Supports hot swapping and hot plugging
  • Full digital non-compression broadcast level transmission;
  • super optic dynamic range and free of adjustment prior to use;
  • fiber optic WDM/CWDM/DWDM technique;
  • support HDTV 4K*2K(3840*2160@60Hz),1080P,1080I,720P.
  • industry level ultra-broad temperature range (-40℃~+85℃),

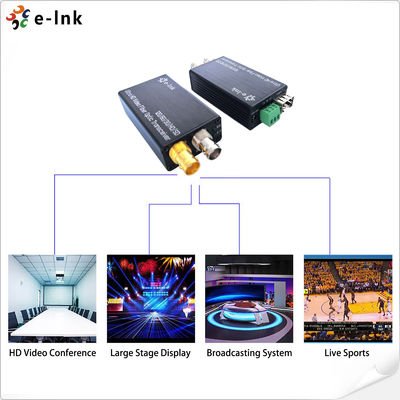

Application

  • UHDTV/4K/8K/HDTV/SDTV Video
  • Digital Video Processing and Editing
  • SMPTE-Compatible Serial Digital Interface
  • Animal films recording;
  • Live events broadcast over fiber
  • High performance(error-free) surveillance networks in Army or security;
  • Intelligent Traffic Monitoring System
  • Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)
  • Military Monitoring (Warehouse, Border, Guards,etc)
  • Stadium (For LIVE HD video, audio transmission)

Mini Converter Optical Fiber 12G-SDI with Tally and loop out Single Mode Fiber LC Connector 20KM





Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible With DVB-ASI and AES10 (MADI)

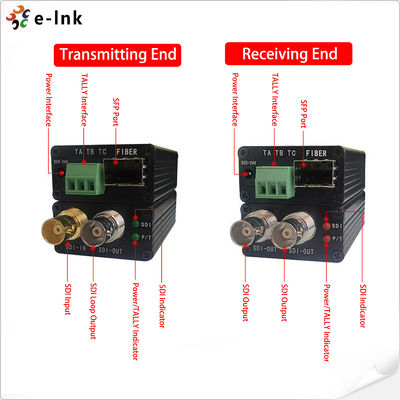

Input 1 x 12G-SDI on BNC
Output 1 x LC optical fiber
1 x 12G-SDI loop-out on BNC
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤70m@12G SDI Belden 1694A
Data type Backward Tally (optional)
Data type Backward RS485 (optional)
Optical transmission bandwidth 270MHz~12GHz
Power 5-15 VDC
Power Consumption 2 W (Max.)

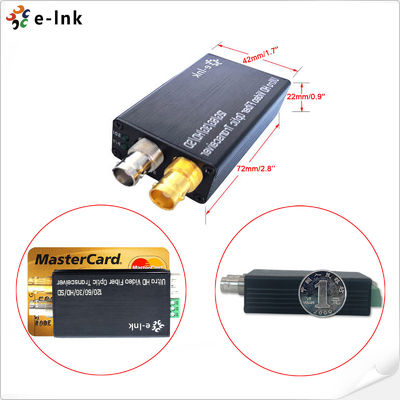

Dimensions (LxWxH) 80 x 40 x 20 (mm)
Storage Temperature -40℃~80℃
Operating Temperature -40℃~85℃







Ordering Information



Model Description

LNK-M12G-1V1T-20 Mini-type 12G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
