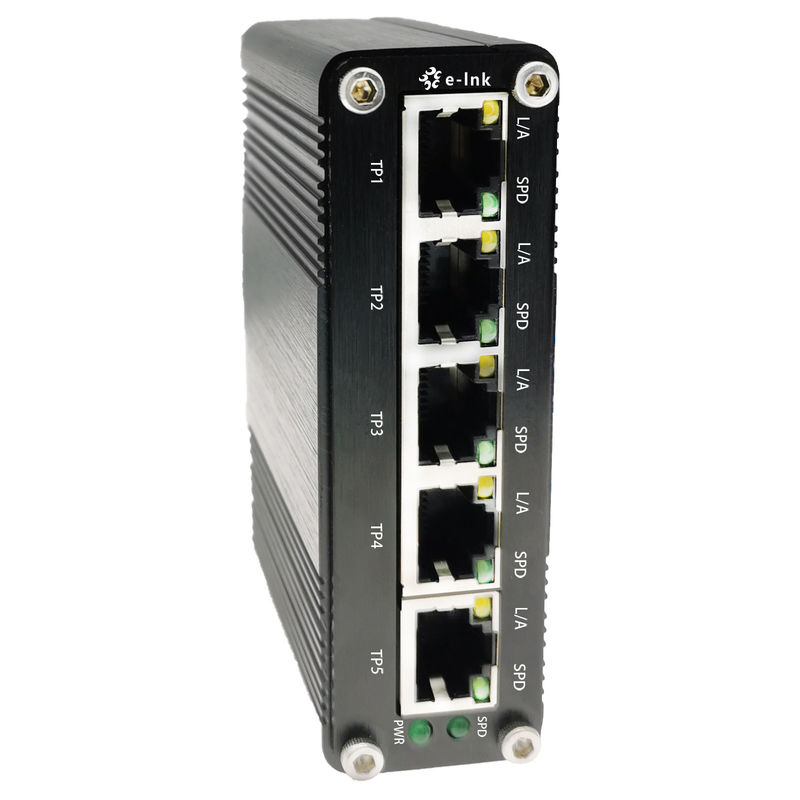

5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC

5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC
5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC 5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC 5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC 5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC

Large Image :  5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-IMC005G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD55/PCS
Packaging Details: Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000PCS/Month
Detailed Product Description
Product Name: 5-port Industrial Ethernet Switch Backplane Bandwidth: 20Gbps
Packet Forwarding Rate: 14.88Mpps Connector: 5 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports
Input Power: 12~48VDC Operating Temperature: -40°C To 80°C (-40°F To 176°F)
Casing: Aluminum Case Mounting Options: DIN-Rail / Wall-mount
Dimensions (WxDxH): 95 X 70x 29m Weight: 0.25Kg
High Light:

1000T Gigabit Ethernet Switch

,

14.88Mpps Gigabit Ethernet Switch

,

12VDC Industrial Ethernet Switch

Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch




Product Description





Overview

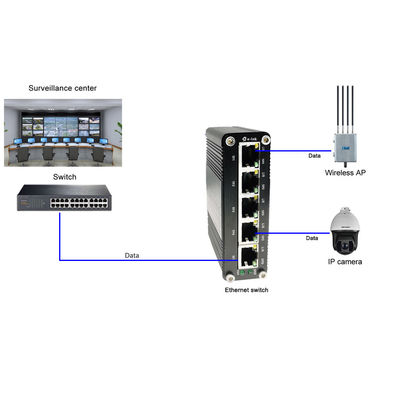

LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

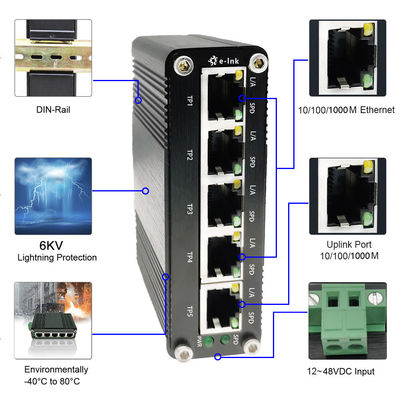

Features





5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

12~48VDC wide range power input

Supports 802.3x Flow control

Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

Supports DIN-Rail and Wall-mount installation

Industry standard design, dustproof and close design IP40, rugged high-strength metal case

-40°C to 80°C (-40°F to 176°F) operating temperature



5 Port 10/100/1000T Gigabit Ethernet Switch 14.88Mpps 12VDC 0



Technical Indexes



Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;

Packet forwarding rate: 14.88Mpps

Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29m
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR Power
L/A Link/Activity
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
