125W ESD SFP Gigabit Ethernet Switch 4 Port 10/100/1000T MDI

125W ESD SFP Gigabit Ethernet Switch 4 Port 10/100/1000T MDI
125W ESD SFP Gigabit Ethernet Switch 4 Port 10/100/1000T MDI 125W ESD SFP Gigabit Ethernet Switch 4 Port 10/100/1000T MDI 125W ESD SFP Gigabit Ethernet Switch 4 Port 10/100/1000T MDI 125W ESD SFP Gigabit Ethernet Switch 4 Port 10/100/1000T MDI

Large Image :  125W ESD SFP Gigabit Ethernet Switch 4 Port 10/100/1000T MDI

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE/FCC/Rohs
Model Number: LNK-IMC104G-SFP
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1 piece in 1 carton box
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Input Power:: 12~48VDC (Terminal Block) Power Consumption:: <125W (Non-PoE<6W)
Dimensions (WxDxH):: 95 X 70 X 29 Mm Mounting Options: DIN-Rail / Wall-mount
Weight:: 0.25Kg Name: SFP Gigabit Ethernet Switch
High Light:

125W SFP Gigabit Ethernet Switch

,

ESD SFP Gigabit Ethernet Switch

,

MDI Industrial Gigabit Ethernet Switch

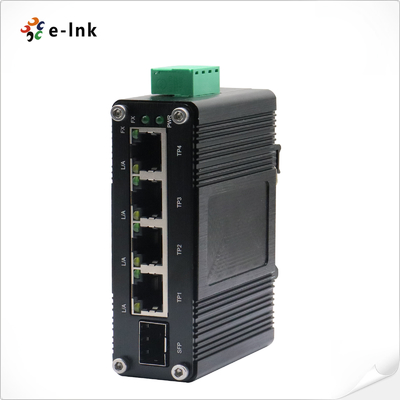

Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch




Overview

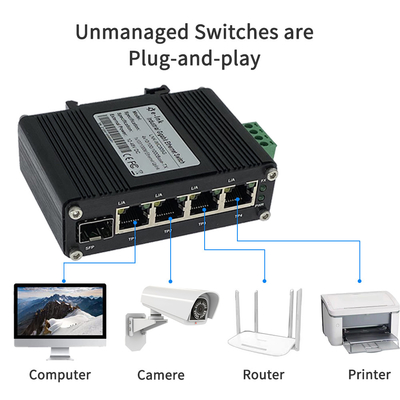

LNK-IMC104G-SFP Series is a Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Features

100/1000BASE-X SFP slots for SFP type auto detection

► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

12~48VDC wide range power input

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature


Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;

Packet forwarding rate: 14.88Mpps

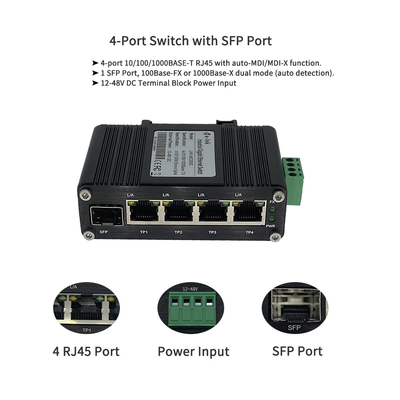

Connector: 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Interface
Connector: 4 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W
Power Input Overload: Automatic Resettable
Reverse Polarity: Present

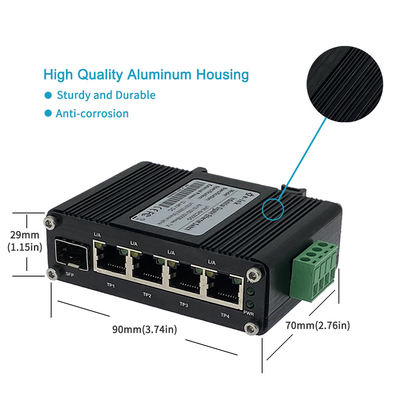

Dimensions (WxDxH): 95 x 70x 29m
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR: Power
L/A: Link/Activity
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)





Order Information

Model Description
LNK-IMC104G-SFP Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
