10/100/1000T 20Gbps Gigabit Ethernet Switch 12~48VDC 5 Port

10/100/1000T 20Gbps Gigabit Ethernet Switch 12~48VDC 5 Port
10/100/1000T 20Gbps Gigabit Ethernet Switch 12~48VDC 5 Port

Large Image :  10/100/1000T 20Gbps Gigabit Ethernet Switch 12~48VDC 5 Port

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-IMC005G
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: 55USD(1-10) 45USD(10-50) 40USD(>100)
Packaging Details: standard export package
Delivery Time: 7 days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 2000
Detailed Product Description
Input Power: 12~48VDC Connector: 5 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports
Power Consumption: <6W Backplane Bandwidth: 20Gbps
Packet Forwarding Rate: 14.88Mpps Dimensions: 95 X 70x 29m
Casing: Aluminum Case Weight: 0.25Kg
Operating Temperature: -40°C To 80°C Mounting Options: DIN-Rail / Wall-mount
High Light:

1000T Gigabit Ethernet Switch

,

20Gbps Gigabit Ethernet Switch

,

48VDC Gigabit Fiber Switch

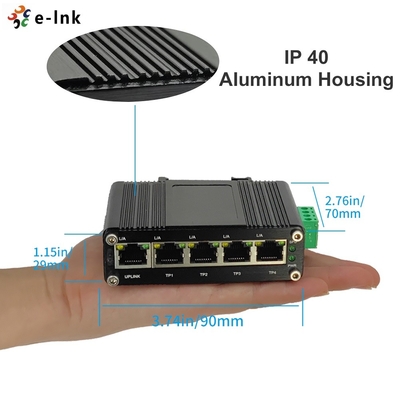

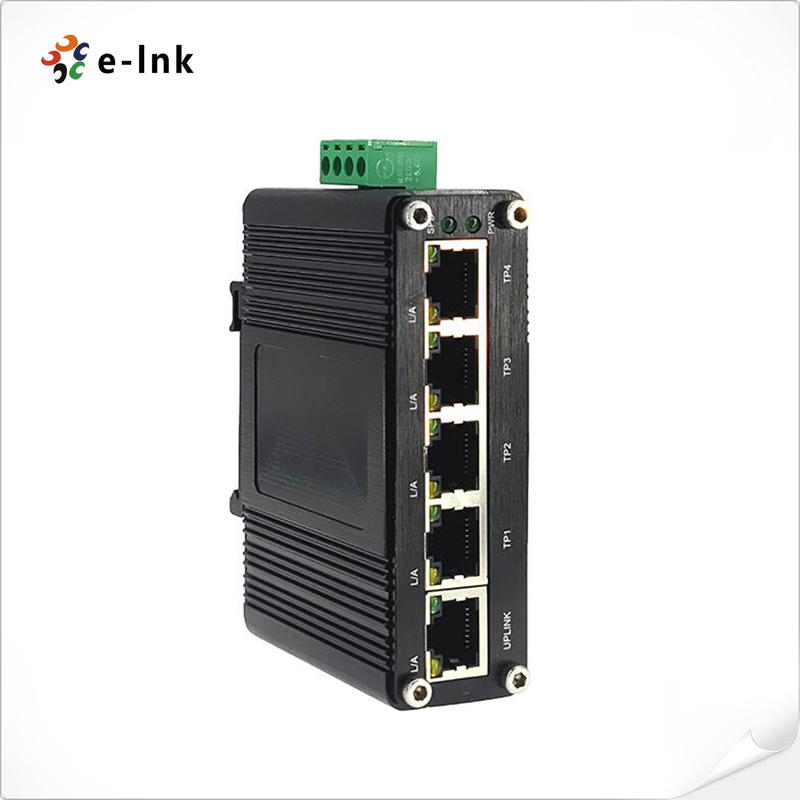

Overview



LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.



The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.



Features



  • 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
  • Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
  • 12~48VDC wide range power input
  • Supports 802.3x Flow control
  • Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Supports DIN-Rail and Wall-mount installation
  • Industry standard design, dustproof and close design IP40, rugged high-strength metal case
  • -40°C to 80°C (-40°F to 176°F) operating temperature



Technical indexes



Ethernet

Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;

Packet forwarding rate: 14.88Mpps

Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29m
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR Power
L/A Link/Activity
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)



Ordering Information



Model Description
LNK-IMC005G Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
