16 Slot 2U Video Converter Rack CCTV Fiber Optic Converter , CCTV Coax To Ip Converter

Name: 16 Slot 2U Video Converter Rack CCTV Fiber Optic Converter , CCTV Coax To Ip Converter
Brand: E-link China
SKU: LNK-V16
Rating: 4.7 (106 reviews)

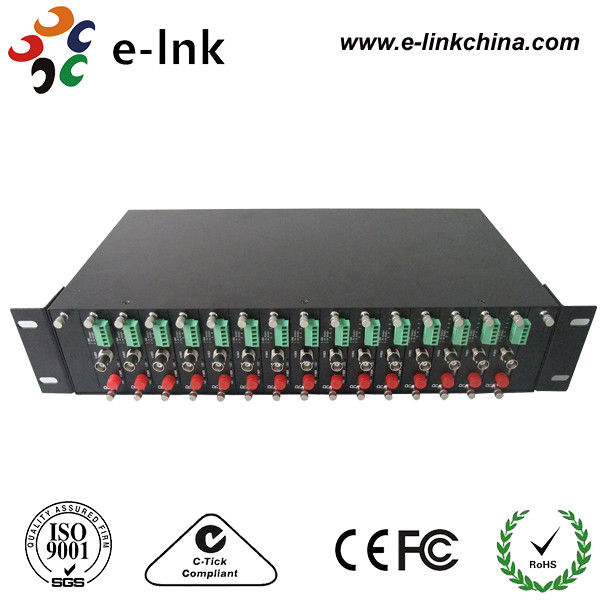

Large Image : 16 Slot 2U Video Converter Rack CCTV Fiber Optic Converter , CCTV Coax To Ip Converter

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link China
Certification:	CE, RoHS, FCC
Model Number:	LNK-V16

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	1 piece in 1 carton box
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Contact Now

Detailed Product Description

Number Of Slots:	16	Structure:	19” 2U Rack
Card-type Video Converter Support:	1Ch Or 2Ch	Power Input:	AC 100~260V
Power Output:	DC5V	Weight:	5.4KG
High Light:	cctv to ethernet converter , cctv camera video converter

16-slot 19" 2U Video Converter Rack for CCTV Fiber Optic Converter

Model: LNK-V16 Series

Overview

LNK-V16 Series is a kind of cost-effective video converter rack (2U) widely used in the equipment room. 1-2 channel card type video converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over. All of the card-type video converters installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing card-type video converters.

Features

The configuration of active/standby power supply ensures uninterruptible operation of the system.
Provide two power supplies, enabling the system can work under many operating environments;
Supporting simultaneous operation of 1Ch or 2Ch Card-type Video Converters, which greatly improves system adaptability;
Supports hot swapping;

Technical Indexes

Parameter	Specifications
Number of slots	16
Structure	19” 2U rack
Card-type video converter support	1Ch or 2Ch
Power input	AC Voltage: AC 100~260V; frequency: 50/60 Hz
Power output	DC5V
MTBF	> 100,000 hours
Power configuration	Single power supply; or Dual power supply for warm backup mode
Dimension (mm)	423x230x90
Weight	5.4KG
LED indication	POWER (power supply)
Operating temperature	-30°C to +55°C
Storage Temperature	-40°C to +85°C
Relative humidity	5%~90% (non condensing)
