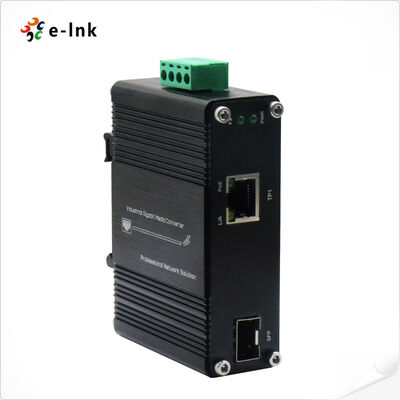

Mini Industrial Solar Voltage Booster 1-Port 10/100/1000/2500Base-T 802.3at PoE+ to 1-Port 10G SFP+ Media Converter
Industrial Solar Voltage Booster Media Converter Overview
This industrial media converter features a solar-ready voltage booster accepting 9-54V DC input to deliver robust 30W PoE+ power. It converts 10/100/1000/2500BASE-T copper to a high speed 10G SFP+ fiber uplink backward compatible with 1G/2.5G/5G modules. Built for harsh environments it operates from -40°C to 75°C with 6KV surge protection in a compact DIN rail IP40 metal housing. Ideal for powering remote devices like wireless access points IP cameras and industrial sensors while providing reliable high speed fiber connectivity for industrial IoT AIoT and smart city networks.
Industrial Solar Voltage Booster Media Converter Features
-
Wide-Input Voltage Boost PoE+: Integrated solar voltage booster supports wide DC input range from 9V to 57V, delivering stable 48V, 30W PoE+ output compliant with IEEE 802.3at standard.
-
High-Speed Media Conversion: Features one 2.5G multi-rate (10/100/1000/2500M) auto-negotiation RJ45 port and one 10G SFP+ fiber port (backward compatible with 1G/2.5G/5G optical modules) for reliable copper-to-fiber conversion.
-
Industrial Rugged Design: IP40-rated metal housing, DIN-rail mountable, operates in a wide temperature range from -40°C to 75°C, with 6KV surge protection and >200,000 hours MTBF.
-
High Compatibility & Plug-and-Play: Auto MDI/MDIX on copper port, auto-detection for SFP+ modules, easy deployment without configuration.
-
Comprehensive Certifications: Compliant with CE, FCC, RoHS, and multiple industrial EMI/EMS standards, ensuring stable and reliable operation in harsh environments.
Industrial Solar Voltage Booster Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
Standards Compliance IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3z Gigabit SX/LX
|
|
IEEE 802.3ae 10 Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.3bz 2.5GBASE-T
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
22,320,000pps (2.5Gps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
10K Bytes
|
|
Address Table Size
|
16K MAC Addresses
|
|
Switching Capacity
|
80Gbps/non-blocking
|
|
Interface
|
|
Copper Ports
|
1 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function
|
|
Optical Port:
|
1 x 10G SFP+(Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers) (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3af/at PoE+ PSE (af/15.4W,at/30W)
|
|
PoE Power Output
|
30 watts max.
|
|
Power Pin Assignment
|
End-span + Mid-span:1/2(+), 4/5(+), 3/6(-), 7/8(-)
|
|
PoE Budget:
|
Up to 30-watt PoE budget (12V-48V DC)
|
|
PoE Power Supply Type
|
802.3at, End-span + Mid-span (Please contact customer service)
|
|
PoE Mode
|
IEEE802.3at comply Mode B (If need Mode A, please contact customer service)
|
|
Voltage Booster
|
DC 9-12V Input
|
PoE 48V max 30W
|
DC 19-24V Input
|
PoE 48V max 30W
|
|
DC 24-36V Input
|
PoE 48V max 30W
|
DC 48-57V Input
|
PoE 48V max 30W
|
|

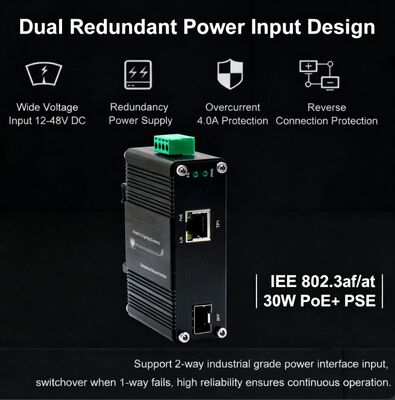

Electrical and Mechanical
|
|
Input Power:
|
12~48V DC, 4-pin terminal block
|
|
Output Power
|
48V DC
|
|
Power Consumption:
|
30W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
POE:
|
PoE Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Industrial Solar Voltage Booster Media Converter Application
-
Industrial IoT & Edge Computing: Provides PoE power and high-speed fiber uplink for PLCs, sensors, and industrial cameras in demanding environments like factory automation and production lines.
-
Solar-Powered Remote Monitoring: Ideal for powering and connecting security cameras, wireless APs, and environmental sensors in off-grid or remote locations using solar panels.
-
Smart City & Transportation: Deployed in outdoor cabinets, traffic signal control boxes, or digital signage to enable long-distance, interference-resistant fiber transmission for HD video and data.
-
Network Upgrade & Extension: Serves as an access point converter for smooth migration from Gigabit to 2.5G/10G networks in enterprise or campus environments, extending copper reach.
-
Harsh Environment Networking: Suitable for deployment in challenging settings such as power utilities, mining, oil & gas, and field operations where wide temperature swings, voltage instability, and strong EMI are present.
Industrial Solar Voltage Booster Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC3012-2.5GP-SFP
|
Industrial 1-Port 1.25G/2.5G/5G/10G Base-X SFP+ to 1-Port 10/100/1000/2500BASE-T IEEE802.3at 30W PoE+ Media Converter
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
