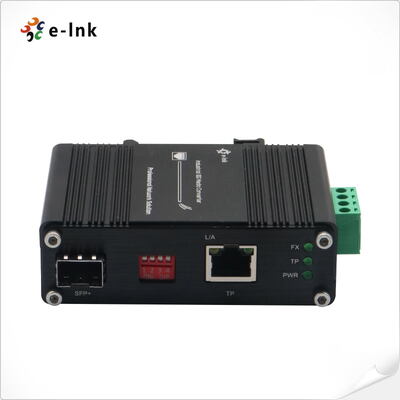

Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Mini Industrial 10G Media Converter Features
1. Comprehensive Multi-Gigabit Copper & Fiber Interface
This unit integrates a highly versatile 100M/1G/2.5G/5G/10GBASE-T RJ45 port with auto MDI/MDI-X and a dedicated 10GBASE-X SFP+ slot. This hybrid design supports seamless media conversion and future-proof connectivity, allowing direct, high-bandwidth links to multi-rate network devices, servers, and storage across varied infrastructures.
2. Advanced Energy Efficiency and Standards Compliance
Engineered in full compliance with key Ethernet standards including IEEE 802.3u, 802.3ab, 802.3bz (2.5G/5GBASE-T), and 802.3ae (10GbE). It incorporates IEEE 802.3az Energy Efficient Ethernet (EEE) technology, dynamically reducing power consumption during periods of low data traffic for sustainable, cost-effective network operation.
3. Robust Power and Installation Flexibility
Features a versatile 12-48VDC terminal block power input for reliable performance in industrial power environments. It supports both DIN-rail and wall-mount installation, offering versatile deployment options for seamless integration into control cabinets, network racks, and other space-constrained industrial enclosures.
4. Intelligent Operational Diagnostics
Equipped with an extensive array of clear LED indicators providing real-time status monitoring for power, link activity, and data rates. This visual diagnostic system enables quick troubleshooting and network health assessment, minimizing downtime and simplifying maintenance in remote or hard-to-access locations.
5. Industrial Hardening for Extreme Conditions
Built to withstand climatically demanding environments with an extended operating temperature range of -40°C to 75°C (-40°F to 167°F). This environmental hardening ensures stable, non-blocking wire-speed performance in outdoor, factory floor, and other harsh applications where temperature fluctuations and physical stress are common.
Mini Industrial 10G Media Converter Application
1. 10G Industrial Backbone & Network Aggregation
Ideal for establishing high-speed backbone links in industrial automation networks, plant-wide data aggregation, and control system integration. Enables seamless copper-to-fiber conversion to extend 10G connectivity between switches, servers, and storage across harsh factory environments.
2. High-Bandwidth Outdoor & Harsh Environment Links
Deployed in outdoor telecom cabinets, power substations, and transportation networks where extreme temperatures and EMI are present. Provides reliable 10G media conversion for fiber backhaul uplinks, supporting CCTV surveillance backbones, ITS (Intelligent Transportation Systems), and remote sensor data collection.
3. Data Center Edge & Industrial Server Connectivity
Connects high-speed multi-Gigabit industrial servers, edge computing nodes, and NAS/SAN storage in ruggedized data environments. The multi-rate RJ45 port ensures compatibility with existing 1G/2.5G/5G infrastructure, while the SFP+ slot enables low-latency fiber uplinks to core networks.
4. Bandwidth Upgrade & Legacy Network Modernization
Facilitates network infrastructure upgrades by converting legacy copper-based 1G/10GBASE-T links to 10G fiber optic connections. Essential for extending network distance, improving EMI immunity, and future-proofing industrial IoT and Industry 4.0 deployments without replacing entire cabling systems.
5. Critical Video & Data Transmission in Extreme Conditions
Ensures zero packet loss for high-resolution video streams, real-time monitoring data, and machine vision systems in temperature-critical applications. Hardened design supports outdoor IP camera networks, thermal imaging systems, and automated inspection lines requiring robust 10G throughput.
Mini Industrial 10G Media Converter Overview
The LNK-IMC10G-SFP+ is an industrial-grade, high-performance 10 Gigabit Ethernet media converter engineered for demanding operational environments. As a compact, hardened device, it delivers non-blocking, wire-speed throughput, making it a vital solution for extending high-bandwidth networks in harsh industrial settings.
Featuring a versatile multi-rate RJ45 copper port supporting 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10GBASE-T standards alongside a 10GBASE-X SFP+ fiber slot, it ensures seamless media conversion and maximum network design flexibility. The IP40-rated rugged metal housing, wide operating temperature range (-40°C to 80°C), and integrated redundant power supply guarantee exceptional reliability and resilience against extreme temperatures, vibrations, and electrical interference.
Ideal for applications in industrial automation, outdoor telecom networks, and surveillance backbones, this converter is perfect for upgrading legacy copper infrastructure to high-speed fiber optics. It is the optimal choice for creating future-proof, robust, and scalable connectivity for critical data transfer, supporting advanced applications such as backbone aggregation, server connectivity, and video surveillance systems requiring 10G bandwidth in climatically challenging locations.
Mini Industrial 10G Media Converter Technical Indexes
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Link/Activity at Ethernet Port
|
|
TP:
|
Ethernet Status
|
|
FX:
|
SFP+ Fiber Port Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail/Wall-mount
|
|
Interface
|
|
Connector:
|
1 x RJ45
|
|
Optical Port:
|
1 x SFP+
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, Redundant Power (4-pin Terminal Block)
|
|
Power Consumption:
|
5W Max
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
Mini Industrial 10G Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC10G-SFP+
|
Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
|
|
SFP Options
|
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).
|
|
► SFP+ module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
► Power Supply is to be purchased separately.
|
