Mini Industrial 4-Port PoE Ethernet Switch 10/100/1000Mbps 802.3at Compliant 30W per Port Switch with 12~48VDC Input and Voltage Booster

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster

Industrial 4-Port PoE Switch with Voltage Booster Features

1. Flexible Fiber Connectivity
Equipped with 100/1000BASE-X SFP slots that support auto-detection for various SFP transceivers. This feature provides scalable fiber optic uplink options, enabling long-distance, high-bandwidth network expansion and seamless integration into diverse industrial backbone infrastructures.

2. High-Power PoE+ Capability
Features four 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X and IEEE 802.3at PoE+ injection (Ports 1-4). This allows simultaneous data transmission and high-efficiency power delivery to connected devices like IP cameras, wireless access points, and industrial sensors, simplifying cabling and installation.

3. Robust Power Design & Versatile Budget
Operates on a wide 12-48VDC input range with an integrated voltage booster, ensuring stable performance in fluctuating power environments. It offers a substantial PoE budget—up to 120W at 48VDC—providing flexible power allocation for multiple high-demand powered devices (PDs) across various voltage inputs.

4. Industrial-Grade Hardware Resilience
Built with a dustproof (IP40) and sealed rugged metal housing, this switch withstands harsh conditions. Its industry-standard design ensures protection against particulate ingress and physical impact, while support for both DIN-rail and wall-mount installations offers versatile and secure deployment in control cabinets or on-site.

5. Extreme Environment Operational Reliability
Engineered for a wide operating temperature range from -40°C to 80°C (-40°F to 176°F). This exceptional tolerance, combined with support for 802.3x flow control for stable data transmission, guarantees uninterrupted and reliable network performance in extreme cold or heat, from outdoor solar farms to factory floors.

Industrial 4-Port PoE Switch with Voltage Booster Application

1. Industrial Automation & Control Networks
Deploy this rugged Ethernet switch within SCADA systems, PLC networks, and factory automation environments. It ensures reliable, real-time data transmission for machine-to-machine (M2M) communication and industrial IoT (IIoT) applications on the plant floor, supporting critical process control and monitoring systems.

2. Outdoor & Harsh Environment Deployments
Ideal for outdoor industrial networks in solar power plants, wind farms, and electrical substations. Its wide temperature tolerance and hardened casing provide robust connectivity for remote telemetry, environmental monitoring sensors, and outdoor security devices exposed to dust, vibration, and extreme temperatures.

3. Transportation & Intelligent Traffic Systems (ITS)
Supports railway signaling, intelligent transportation systems (ITS), and roadside unit (RSU) networks. The switch delivers stable PoE-powered connectivity for traffic monitoring cameras, variable message signs (VMS), and vehicle detection sensors along highways, tunnels, and urban transit corridors.

4. Power Utility & Smart Grid Communications
Enables secure data aggregation in smart grid and power utility networks. It connects remote terminal units (RTUs), protective relays, and metering equipment across substation automation systems, ensuring seamless fiber-optic backhaul for mission-critical grid monitoring and control.

5. Surveillance & Security Networks
Forms a resilient backbone for IP surveillance systems in industrial security and critical infrastructure protection. It delivers high-wattage PoE+ to PTZ cameras, access control systems, and NVRs over extended distances via fiber uplinks, ensuring uninterrupted video feeds and network integrity.

Industrial 4-Port PoE Switch with Voltage Booster Overview

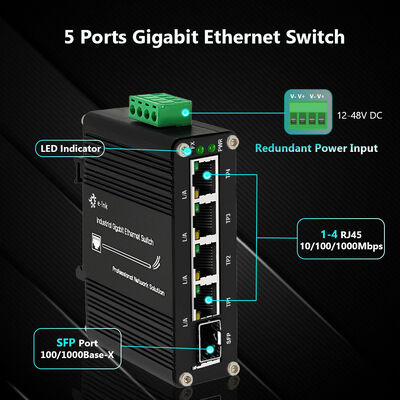

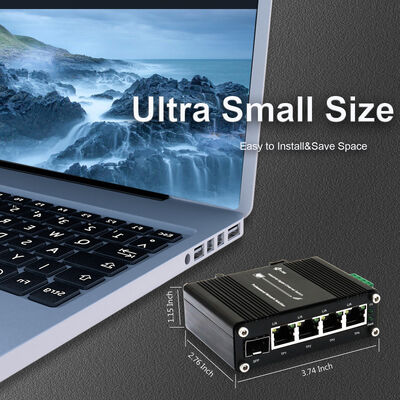

The LNK-IMC104GP-SFP Series, a compact and rugged industrial Ethernet switch engineered for extreme environments. This high-performance unmanaged switch features 4x 10/100/1000BASE-T Gigabit PoE+ ports compliant with IEEE 802.3at, delivering robust power and data over a single cable, plus 1x 100/1000X SFP slot for flexible fiber connectivity. Designed with a wide 12-48VDC input range and integrated voltage booster, it is an ideal, economical networking solution for solar-powered systems and harsh industrial applications.

Built to exceed critical industrial standards, it ensures reliable operation under severe vibration, shock, and across a wide temperature range. Fully compliant with CE and FCC certifications and subjected to rigorous 100% burn-in testing, this industrial PoE switch guarantees durability and stability for long-term deployment in demanding settings such as outdoor solar, transportation, and factory automation. Choose this cost-effective switch for a dependable and simplified industrial network connection.

Industrial 4-Port PoE Switch with Voltage Booster Technical Indexes

Industrial 4-Port PoE Switch with Voltage Booster Ordering Information

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing

product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
