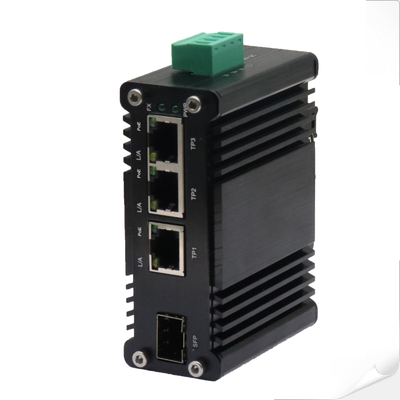

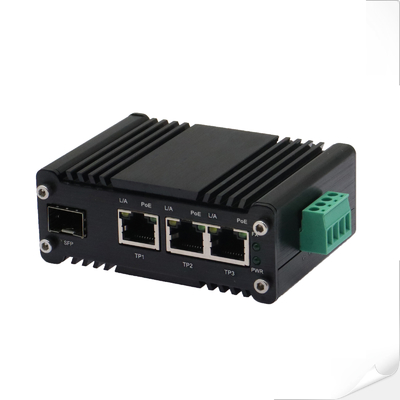

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
Mini Industrial 3-Port Switch with Voltage Booster Overview
The ZP-HIMC103GP-SFP is a compact industrial-grade PoE+ switch featuring 3×802.3at PoE+ Gigabit
ports and 1×100/1000BASE-X SFP fiber slot for flexible uplink connectivity. Designed for solar-powered
and harsh environment applications, it operates on a wide 12-48V DC input with integrated voltage booster
technology. With an extended operating temperature range (-40°C to 75°C), robust resistance to shock
and vibration, and full compliance with CE/FCC standards, this unmanaged switch provides reliable
power and data transmission for IP cameras, wireless systems, and industrial equipment in
demanding outdoor and remote installations.
Mini Industrial 3-Port Switch with Voltage Booster Features
►3 × 10/100/1000BASE-T RJ45 Ports with auto MDI/MDI-X and IEEE 802.3at PoE+ Injector (Port 1–3)
►1 × Dual-Mode SFP Port: Supports 100BASE-FX or 1000BASE-X, with auto detection
►Wide Power Input Range: 12~48V DC with built-in power booster for stable operation
►High PoE Power Budget:
90W at 48V DC
90W at 24V DC
60W at 12V DC
►Full/Half-Duplex Support with auto-negotiation for seamless communication
►Energy Efficient Ethernet: Compliant with IEEE 802.3az standard
►Rugged Industrial Design: IP40-rated aluminum housing for durability in harsh environments
►Flexible Installation: Supports both DIN-rail and wall-mount setups
►Wide Operating Temperature Range: -40°C to 75°C (-40°F to 167°F)
Mini Industrial 3-Port Switch with Voltage Booster Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
4 Mbit
|
|
Switch Fabric:
|
12Gbps
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Power Consumption:
|
<95W (Non-PoE<6W)
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Ethernet LINK Status
|
|
FX:
|
Fiber LINK Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 36 mm
|
|
Weight:
|
0.27Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial 3-Port Switch with Voltage Booster Ordering Information
|
Model
|
Description
|
|
ZP-HIMC103GP-SFP
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 12~48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
