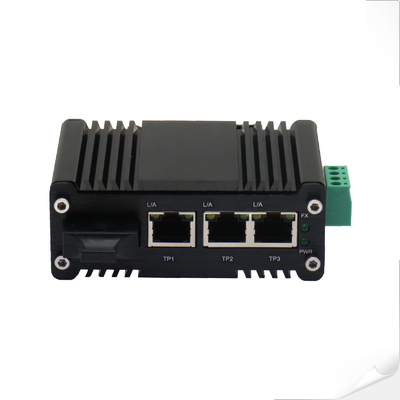

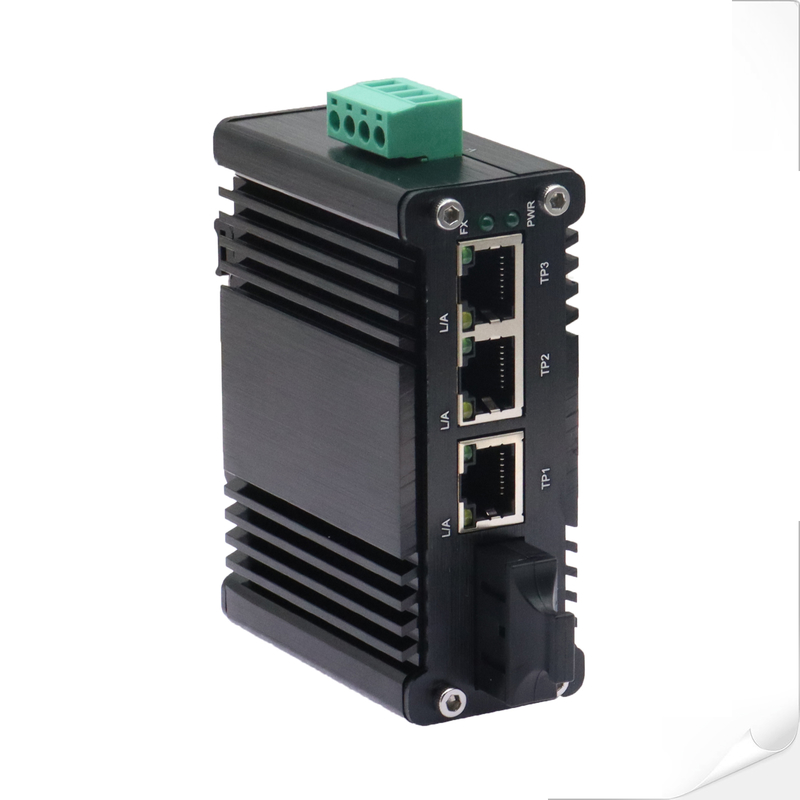

Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch
Mini Industrial 3-Port SC Gigabit Ethernet Switch Overview
The ZP-HIMC103G Series is a rugged, industrial-grade Gigabit Ethernet switch. It features
3x 10/100/1000BASE-T copper ports and 1x 1000BASE-X SC fiber port, all housed in a compact,
IP40-rated enclosure. Designed for harsh environments, the switch operates in extreme temperatures
ranging from -40°C to +75°C and supports half- and full-duplex operation. With its versatile fiber
connectivity (single- or multimode) and reliable performance, this switch is ideal for extending networks
to remote locations and connecting IP cameras, wireless access points, and other industrial equipment.
Mini Industrial 3-Port SC Gigabit Ethernet Switch Features
►3 × 10/100/1000BASE-T RJ45 Ports with auto MDI/MDI-X function
►1 × 1000BASE-X SC Fiber Port for extended network connectivity
►Full/Half-Duplex with Auto-Negotiation for seamless data transmission
►Energy Efficient Ethernet: Compliant with IEEE 802.3az standard
►Wide Power Input Range: 12~48V DC terminal block
►Durable IP40 Aluminum Housing for industrial environments
►Flexible Installation: Supports DIN-rail and wall-mount mounting
►Wide Operating Temperature Range: -40°C to 75°C (-40°F to 167°F) for harsh conditions
Mini Industrial 3-Port SC Gigabit Ethernet Switch Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
4 Mbit
|
|
Switch Fabric:
|
12Gbps
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
3 x RJ45
|
|
Optical Port:
|
1 x SC 1000Base-X
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Power Consumption:
|
5W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Ethernet LINK Status
|
|
FX:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 36 mm
|
|
Weight:
|
0.27Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial 3-Port SC Gigabit Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ZP-HIMC103G
|
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
|
|
ZP-HIMC103G-20
|
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
|
|
ZP-HIMC103GS-20A
|
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
|
|
ZP-HIMC103GS-20B
|
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
