Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mini Industrial 5-Port Gigabit Ethernet Switch Overview

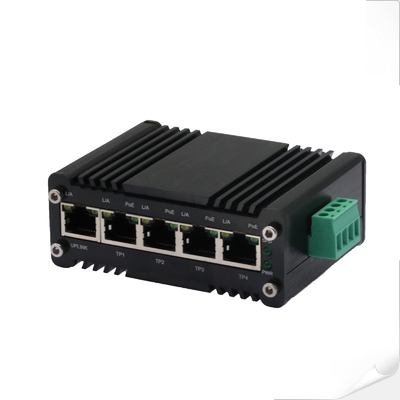

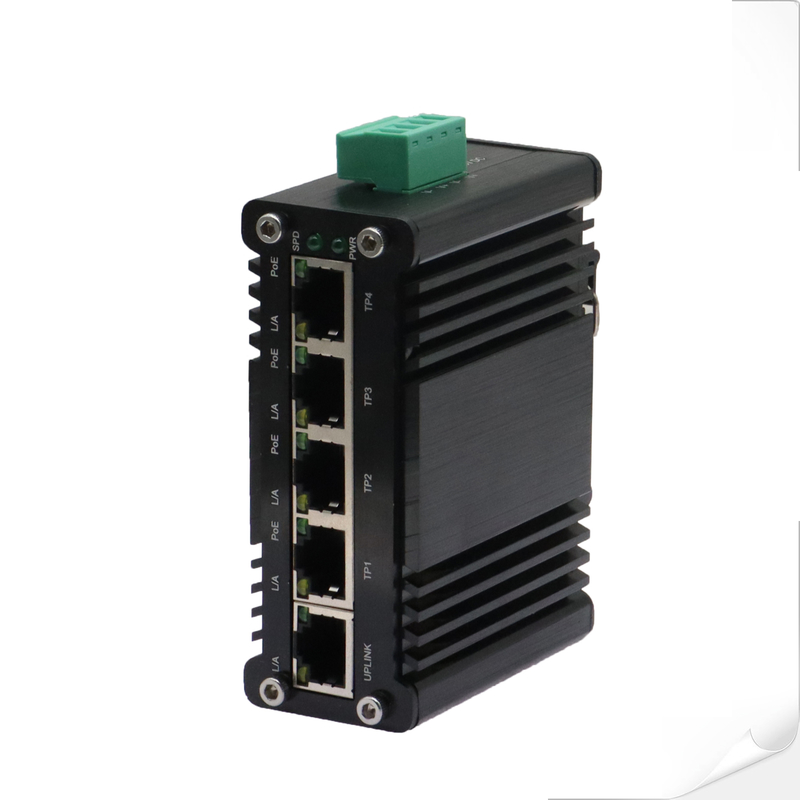

The ZP-HIMC005GP is a compact, industrial-grade, 5-port Ethernet switch with 4x 802.3at
PoE+ Gigabit ports and 1x standard Gigabit uplink port. Designed for harsh environments,
the switch supports a wide 12-48 V DC input, operates across an extended temperature range,
and offers high resistance to shock and vibration. This CE/FCC-certified, unmanaged switch
undergoes 100% burn-in testing and delivers a reliable, plug-and-play networking solution
for powering IP cameras, wireless access points, and other devices in demanding industrial applications.
Mini Industrial 5-Port Gigabit Ethernet Switch Features
►5-Port 10/100/1000Mbps RJ45 with auto MDI/MDI-X function
►5 × 10/100/1000BASE-T Ports for high-speed connectivity
►4 PoE+ Ports (IEEE 802.3at): Port 1–4 support PoE+ with auto MDI/MDI-X
►Wide Power Input Range: 12~48V DC for flexible deployment
►High PoE Power Budget:
120W at 48V DC
90W at 24V DC
60W at 12V DC
►802.3x Flow Control for reliable data transmission
►Versatile Mounting Options: Supports DIN-rail and wall-mount installation
►Rugged Industrial Design: IP40-rated dustproof enclosure with high-strength metal housing
►Wide Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Mini Industrial 5-Port Gigabit Ethernet Switch Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE 802.3at Power over Ethernet Plus PSE
|
|
IEEE 802.3af Power over Ethernet Plus
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer:
|
1Mbits
|
|
Packet Length:
|
10Kbytes
|
|
MAC Address Table:
|
8K
|
|
Switch Fabric:
|
10Gbps/non-blocking
|
|
Exchange Property
|
Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps
|
|
Connector:
|
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
<125W (Non-PoE<6W)
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
Dimensions (WxDxH):
|
95 x 70x 36mm
|
|
Weight:
|
0.29Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
LED Indicators:
|
|
PWR
|
Power
|
|
L/A
|
Link/Activity
|
|
PoE
|
PoE Status
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55032:2017
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial 5-Port Gigabit Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ZP-HIMC005GP
|
Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
