Mini Industrial 5-Port Gigabit Ethernet Switch
Mini Industrial 5-Port Gigabit Ethernet Switch Overview

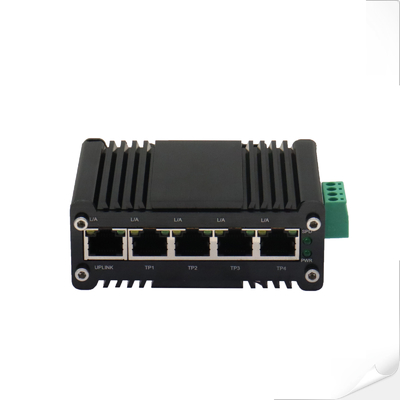

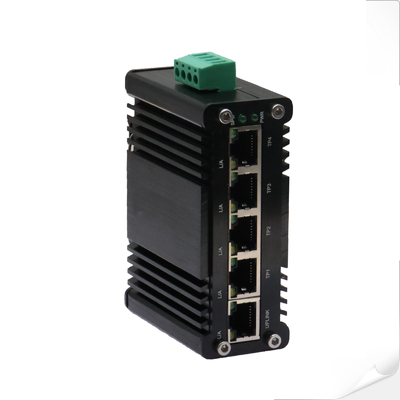

The ZP-HIMC005G is a compact, industrial-grade, 5-port Gigabit Ethernet switch that supports
speeds of 10/100/1000 Mbps. Designed for harsh environments, it features a wide 12–48 V DC power input,
high tolerance to vibration and shock, and an extended operating temperature range. This unmanaged
switch is compliant with CE/FCC standards, has undergone 100% burn-in testing, and delivers reliable,
plug-and-play performance for cost-sensitive industrial applications.
Mini Industrial 5-Port Gigabit Ethernet Switch Features
►5-Port 10/100/1000Mbps RJ45 with auto MDI/MDI-X function
►Auto-Negotiation Support for 10/100Mbps half/full duplex and 1000Mbps full duplex
►Wide Power Input: 12~48V DC
►802.3x Flow Control for reliable data transmission
►Optional PoE Support for flexible power solutions
►Energy Efficient Ethernet (IEEE 802.3az) compliant
►Flexible Installation: Supports DIN-rail and wall-mount mounting
►Rugged Industrial Design: IP40-rated dustproof enclosure with high-strength metal casing
►Wide Operating Temperature Range: -40°C to 80°C (-40°F to 176°F)
Mini Industrial 5-Port Gigabit Ethernet Switch Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE 802.3af/at Optional
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer:
|
1Mbits
|
|
Packet Length:
|
10Kbytes
|
|
MAC Address Table:
|
8K
|
|
Switch Fabric:
|
10Gbps/non-blocking
|
|
Exchange Property
|
Backplane bandwidth: 10Gbps;
Packet forwarding rate: 14.88Mpps
|
|
Connector:
|
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
<6W (PoE In Use: <125W)
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
Dimensions (WxDxH):
|
95 x 70x 36mm
|
|
Weight:
|
0.29Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
LED Indicators:
|
|
PWR
|
Power
|
|
L/A
|
Link/Activity
|
|
SPD
|
Data Rate
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55032:2017
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial 5-Port Gigabit Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ZP-HIMC005G
|
Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
