Industrial 1-Port 95W PoE++ to 4-Port PoE+ Gigabit Extender 400m Range

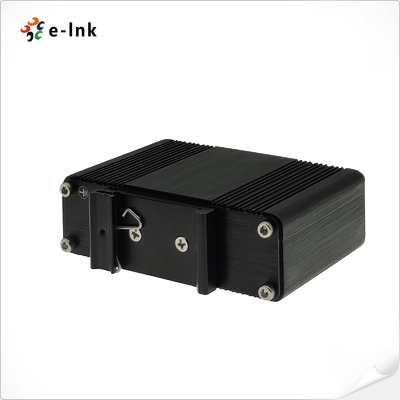

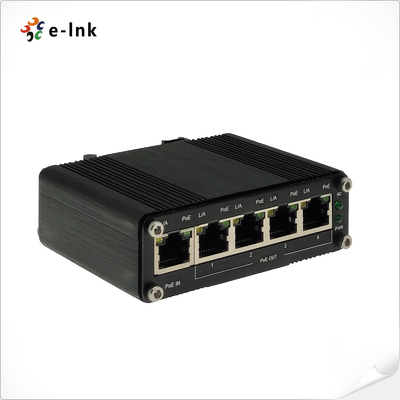

Large Image : Industrial 1-Port 95W PoE++ to 4-Port PoE+ Gigabit Extender 400m Range

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IPE104-90

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$79-$102
Packaging Details:	PoE Extender Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input:	1× RJ45, IEEE 802.3bt PoE++ (up To 95W)	Output:	4× RJ45, IEEE 802.3af/at, 75W Shared Power Budget
Throughput:	10Gbps Switching, 14.88Mpps Forwarding Rate	MAC Table:	8K Entries, Supports 10K Jumbo Frames
Extension:	100m Per Segment, Up To 400m With Cascading	Case & Size:	IP40-rated Aluminum, 95 × 70 × 30 Mm, 0.25kg

Industrial 1-Port 95W PoE++ to 4-Port PoE+ Gigabit Extender 400m Range

Overview

The LNK-IPE104-90 PoE Extender is a rugged industrial-grade solution that expands power and data

connectivity for multiple devices over long distances. With a single 802.3bt PoE++ input (up to 95W),

it provides a 75W shared PoE budget for up to four powered devices while extending Gigabit Ethernet

to 200m. Daisy-chaining three units extends the reach to 400m, enabling flexible deployment of IP

cameras, access points, and other PDs. Its IP40-rated aluminum housing, wide operating temperature,

and surge protection ensure dependable performance in demanding environments.

Features

1× PoE++ input (95W) → 4× PoE outputs (75W total)

Extends data + PoE up to 200m, expandable to 400m with 3 units

Gigabit performance: 10/100/1000 Mbps, 10Gbps switching capacity

Compatible with IEEE 802.3af/at/bt PDs

No external power adapter required for operation

Compact IP40 aluminum case, lightweight yet robust

Surge (6KV) & ESD (8KV) protection for stable operation

Supports DIN-Rail or wall-mount installation

Works reliably in -40°C to 80°C industrial conditions

Technical Indexes

Ethernet Port
PoE Input Port	10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input Input Power 50~57V DC, Max 95W
PoE Output Port	1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m
Cascade connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-),4/5(+), 7/8(-)
Switch Property
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control
Forwarding Modes	Store and Forward
Transmission Distance	100m
MAC Table	8K
Switching Capacity	10Gbps
Packet Forwarding Rate	14.88Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC6000-4-5
ESD Protection	6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2
Protection Level	IP 40
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options	DIN-Rail / Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Ordering Information

Model	Description
LNK-IPE104-90	Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
