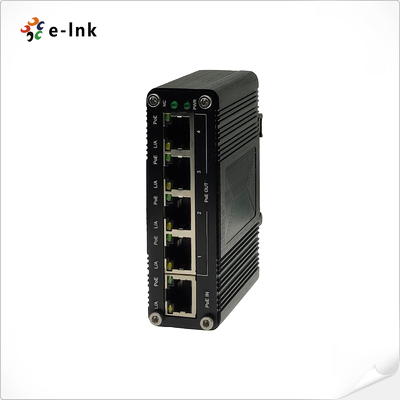

Industrial 1-Port PoE+ to 4-Port PoE Gigabit Extender 100m–400m Range

Large Image : Industrial 1-Port PoE+ to 4-Port PoE Gigabit Extender 100m–400m Range

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IPE104-30

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$59-$82
Packaging Details:	PoE Extender Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Port:	1× RJ45, IEEE 802.3at PoE+ (up To 30W)	Output Ports:	4× RJ45, IEEE 802.3af/at (25.5W Total)
Throughput:	10Gbps Switching Capacity	Forwarding Rate:	14.88Mpps, Store-and-forward Mode
Protection:	IP40 Case, 6KV Surge & 6/8KV ESD Immunity	Installation:	DIN-Rail Or Wall-mount

Industrial 1-Port PoE+ to 4-Port PoE Gigabit Extender 100m–400m Range

Overview

The LNK-IPE104-30 PoE Extender delivers a practical way to expand PoE networks without additional

power adapters or complex wiring. Powered via a single 802.3at PoE+ input (30W), it distributes up to

25W across four PoE output ports while extending Ethernet and power up to 200m. Daisy-chaining up

to three units allows a total PoE network reach of 400m, ideal for IP cameras, wireless APs, and other

powered devices in harsh industrial settings. Rugged aluminum housing, IP40 protection, and wide

operating temperature make it reliable for mission-critical deployments.

Features

1 PoE+ input (30W) → 4 PoE outputs (25W total)

Extends data + power up to 200m, chainable to 400m

Supports 10/100/1000 Mbps Gigabit speeds

Compatible with IEEE 802.3af/at PDs

IP40-rated aluminum enclosure, compact & robust

DIN-Rail or wall-mount installation flexibility

Operates in extreme temps: -40°C to 80°C

Surge & ESD protection (6KV) for stability

Saves cost by adding PoE ports without extra wiring

Technical Indexes

Ethernet Port
PoE Input Port	10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W
PoE Output Port	1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m
Cascade connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-),4/5(+), 7/8(-)
Switch Property
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control
Forwarding Modes	Store and Forward
Transmission Distance	100m
MAC Table	8K
Switching Capacity	10Gbps
Packet Forwarding Rate	14.88Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC6000-4-5
ESD Protection	6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2
Protection Level	IP 40
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options	DIN-Rail / Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Ordering Information

Model	Description
LNK-IPE104-30	Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
