30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector
Industrial IP67 Waterproof PoE Injector Overview

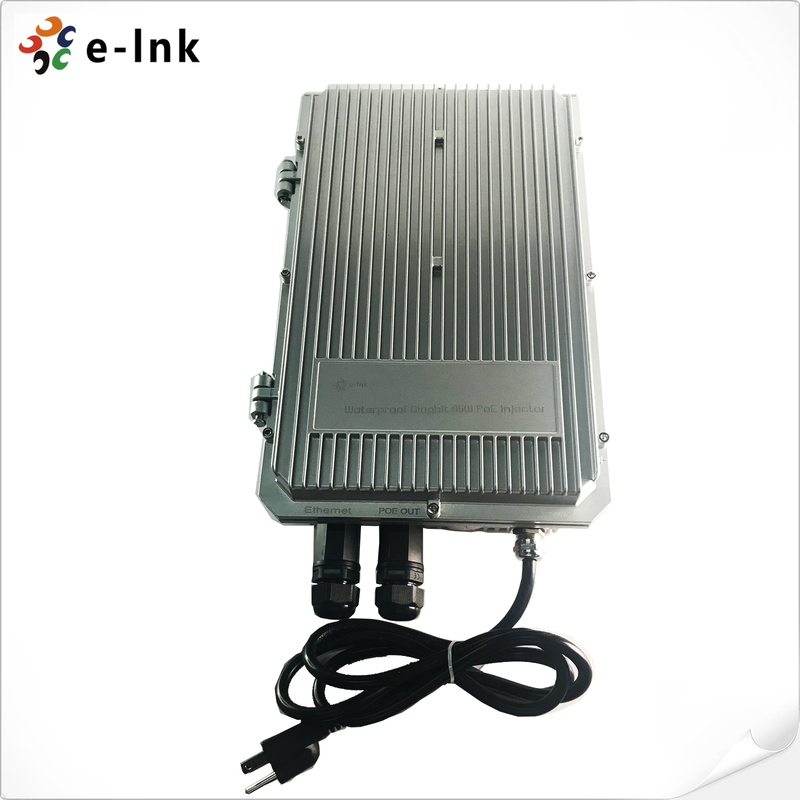

The E-Link LNK-IPOE-30W is an industrial-grade, IP67-rated, single-port PoE injector designed
for the most demanding outdoor conditions. It is fully compliant with IEEE 802.3at standards and
delivers up to 30W of power and Gigabit Ethernet data over a single UTP cable to high-demand
devices, such as PTZ cameras, speed domes, and wireless access points. Its rugged aluminum
shell offers exceptional immunity to electromagnetic interference, and the injector is built to withstand
dust, water ingress, and extreme temperatures ranging from -40°C to 80°C. With advanced features
like PD detection and classification for safe power-up and a wide input range of 90–264 VAC, this injector
guarantees the reliable operation of security and surveillance systems in any conditions. It is compatible
with the LNK-POT-MBK installation kit for easy mounting.
Industrial IP67 Waterproof PoE Injector Features
- Supports 10/100/1000Base-TX high-speed network connection
- IEEE 802.3af/at compliant for PoE power delivery
- Designed for outdoor use with direct power input
- PoE output up to 30W to power connected devices
- Power pins: 4/5 (+), 7/8 (-)
- Integrated signal and PoE output with 6KV lightning protection
- Wide operating temperature: -40°C to +80°C (-40°F to +176°F)
- Rugged IP67-rated metal housing, waterproof and dustproof
- Sealing gasket tested for corrosion, aging, and load durability
- Plug-and-play installation for quick and easy setup
Industrial IP67 Waterproof PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 10BASE-T Ethernet
|
|
IEEE 802.3u 100BASE-TX Fast Ethernet
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
1,488,000pps (1000Mbps)
|
|
Cabling:
|
10/100/1000Base-T
|
|
Connector:
|
2x M22 Shielded RJ-45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Input & Output
|
|
Input Power:
|
90~264VAC
|
|
Output PoE Power:
|
30W
|
|
Power Pins:
|
4/5(+),7/8(-)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
M22 Shielded RJ-45
|
|
Max. Power per Port:
|
30W Max
|
|
AC Surge Protection
|
|
Line-Earth 1.2/50us (8/20us):
|
6KV
|
|
Line-Line 1.2/50us (8/20us):
|
4KV
|
|
PoE Surge Protection
|
|
Protected line:
|
1,2,3,4,5,6,7,8
|
|
Common mode surge protection(10/700us):
|
6KV
|
|
Differential mode surge protection (10/700us):
|
1.5KV
|
|
Mechanical
|
|
Dimensions (LxWxH):
|
304 x 184 x 75 mm (inner size)
|
|
Weight:
|
3.6Kg
|
|
Casing:
|
Aluminum Case
|
|
Color:
|
Silver
|
|
Mounting Options:
|
Pole-Mount
|
|
Regulatory Approvals
|
|
Safety Approvals: UL, CE
|
|
EMI: FCC CFR47 Part 15, EN55024, EN55032
|
|
EMS:
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port: ±2kV; Data Port: ±1kV
IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM
IEC61000-4-6(CS) 10V(150kHz~80MHz)
|
|
Immunity:
IEC60068-2-6(Vibration)
IEC60068-2-27(Impact)
IEC60068-2-32(Free Fall)
|
Industrial IP67 Waterproof PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-IPOE-30W
|
30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector
|
|
Mounting Options
|
► Pole-mounted (installation kit needs to be purchased separately)
|
|
LNK-POT-MBK
|
Pole-Mount installation kit
|
