Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection
Waterproof Industrial 95W PoE Injector Overview

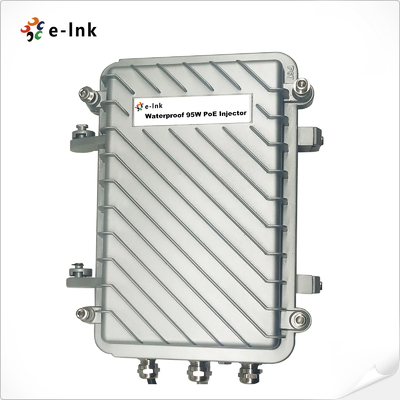

The LNK-WP901 is a high-power, outdoor PoE++ injector that delivers 95W of power to remote
devices via standard Ethernet cabling's four pairs. It is fully compliant with IEEE 802.3bt standards
and engineered for harsh outdoor environments. It features superior 6KV (10/700μs) surge protection
to safeguard connected equipment from lightning strikes and power spikes. The LNK-WP901 provides
a seamless, reliable power solution for high-demand IP terminals, including 802.11ax Wi-Fi 6 access
points, PTZ security cameras, and other advanced IoT devices. It does not require any modification
to your existing network infrastructure. The LNK-WP901 guarantees safe, stable, and continuous operation
for professional outdoor wireless and surveillance deployments.
Waterproof Industrial 95W PoE Injector Features
-
IP67-rated protection for reliable performance in outdoor and industrial environments
-
6KV (10/700µs) surge protection on LAN and PoE ports to safeguard equipment
-
1 RJ45 Ethernet data input port + 1 RJ45 PoE output port (data + power)
-
Supports 95W LTPoE++ high-power PoE for demanding devices
-
Wall-mount design for easy and flexible installation
-
Wide operating temperature range: -40°C to 80°C (-40°F to 176°F) for harsh conditions
Waterproof Industrial 95W PoE Injector Technical Indexes
|
Parameter
|
Specifications
|
|
Standard
|
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-Tx Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet
Support terminal equipment with IEEE802.3af/at/bt, PoE++
RoHS Compliance
WEEE Compliance
Protection Level: IP67, IEC60529, NEMA 250
|
|
Input & Output
|
Input : 48~57VDC
Output: IEEE802.3bt 95W
Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
Data Speed: 10/100/1000Mbps
|
|
Working Environment
|
Operating Temperature: -40℃ to 80℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
|
|
AC Surge Protection
|
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
|
|
PoE Surge Protection
|
Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
|
|
Mechanical Characteristics
|
Case: Metal
|
|
Color: Gray
|
|
Mounting: Pole-mounted
|
|
IP Rated: IP67
|
|
Size (LxWxH): 260mm X 210mm X 80mm
|
|
Weight: 1.5KG
|
|
Safety Approvals
|
CE, FCC, IP67
|
|
EMI
|
FCC CFR47 Part 15, EN55024, EN55032
|
|
EMS
|
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
IEC61000-4-6(CS) 10V(150kHz~80MHz)
|
|
Immunity
|
IEC60068-2-6(Vibration)
IEC60068-2-27(Impact)
IEC60068-2-32(Free Fall)
|
Waterproof Industrial 95W PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-WP901
|
Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection
|
Waterproof Industrial 95W PoE Injector Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing
product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
