Industrial 10G 95W PoE++ Injector 802.3at/bt 12–48V DC Input

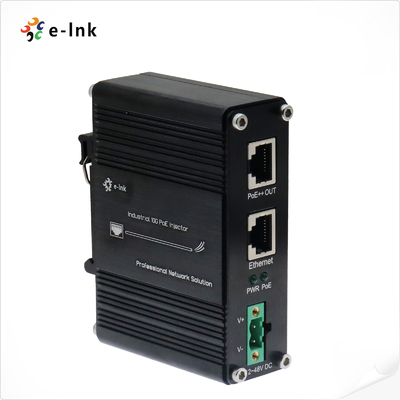

Large Image : Industrial 10G 95W PoE++ Injector 802.3at/bt 12–48V DC Input

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ601-90

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$115-$132
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

PoE Standard:	IEEE 802.3af/at/bt, Up To 95W PoE++ Output	Input Voltage:	12–48VDC (Terminal Block, Power Booster Built-in)
Ethernet Ports:	1x Data In + 1x PoE Out, 10/100/1000/2.5G/5G/10G	Operating Temp:	-40°C To +80°C, Storage Up To +85°C
Housing:	Rugged IP40 Aluminum, 95 × 70 × 30 Mm, 0.25 Kg	Mounting Options:	Wall-mount And DIN-rail Ready

Industrial 10G 95W PoE++ Injector 802.3at/bt 12–48V DC Input

Overview

The LNK-INJ601-90 is a rugged single-port industrial PoE++ injector delivering up to 95W high-power

output over 10G Ethernet. With a wide 12–48VDC input range and built-in voltage booster, it

ensures reliable power delivery to high-consumption devices such as PTZ cameras, wireless APs, and

IoT terminals. Its -40°C to 80°C hardened design and compact aluminum housing make it ideal for

harsh industrial and outdoor environments.

Features

Delivers up to 95W PoE++ power compliant with IEEE 802.3bt / LTPoE++

12–48VDC wide input range with integrated power boost

Supports 10/100/1000/2.5G/5G/10G Base-T Ethernet

Hardened design: operates in -40°C to +80°C extreme conditions

Compact aluminum IP40 case with DIN-rail & wall-mount options

Advanced LED diagnostics for power and PoE status monitoring

Surge & ESD protection ensures reliable field deployment

Technical Indexes

Ethernet
Standards:	10/100/1000/2.5G/5G/10G BASE-T Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	14,880,000pps (10Gbps)
Cabling:	10/100/1000/2.5G/5G/10G BASE-T: CAT7 or above
Maximum Distance:	CAT7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:	Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	IP40 Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Standard Accessories
Package Contents	LNK-INJ401-90
	User's manual
	Wall-mount kit
	DIN-mount kit
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ601-90	10G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
