Industrial 10G PoE+ Injector 30W IEEE802.3at 12–48VDC Wide Input

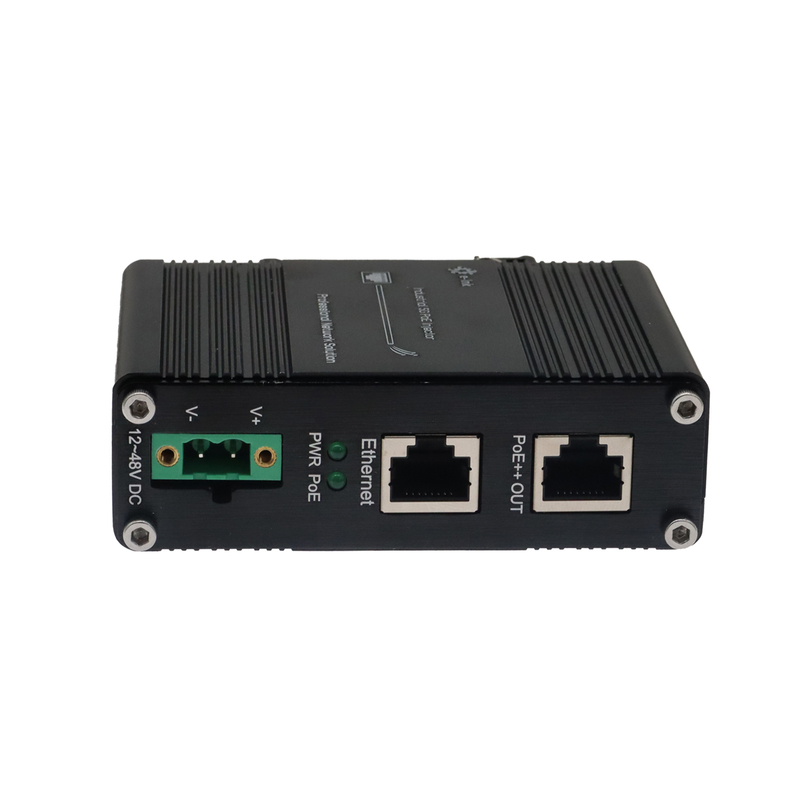

Large Image : Industrial 10G PoE+ Injector 30W IEEE802.3at 12–48VDC Wide Input

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ601-30

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$58-$68
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

PoE Standard:	IEEE 802.3af/at (PoE/PoE+)	PoE Output:	30W Max Per Port (Alternative B Mode)
Data Rate:	10/100/1000/2.5G/5G/10G Base-T	Forwarding Rate:	14.88 Mpps (10Gbps)
Ports:	1 × RJ45 Data In + 1 × RJ45 PoE Out	Power Input:	12–48VDC, Max. 36W Consumption

Industrial 10G PoE+ Injector 30W IEEE802.3at 12–48VDC Wide Input

Overview

The LNK-INJ601-30 is a rugged industrial-grade 10G PoE+ injector designed to power and connect

devices such as IP cameras, access points, and IoT terminals. Supporting 10/100/1000/2.5G/5G/10G

Base-T, it ensures ultra-fast data transfer and stable 30W PoE+ output. With its 12–48VDC wide

input design, aluminum alloy casing, and extended operating temperature range (-40°C to +80°C), this

injector delivers high performance and durability in mission-critical environments.

Features

10G Network Ready – Supports 10/100/1000/2.5G/5G/10G Base-T for maximum throughput.

PoE+ Power Delivery – Provides up to 30W output compliant with IEEE 802.3af/at.

Flexible Power Input – Operates on 12–48VDC for diverse installation needs.

Rugged Design – Compact aluminum housing with IP-rated durability.

Industrial-Grade Reliability – Works in extreme climates -40°C to +80°C.

Easy Deployment – DIN-rail and wall-mount options for versatile installation.

Diagnostics Made Simple – LED indicators for instant power & PoE status check.

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	14,880,000pps (10Gbps)
Cabling:	10/100/1000/2.5G/5G/10G Base-T: Cat7 or above
Maximum Distance:	Cat7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ601-30	12~48VDC Power Input Industrial 10G PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
