Industrial 95W PoE++ Injector 802.3bt 12–48VDC Wide Input with Booster

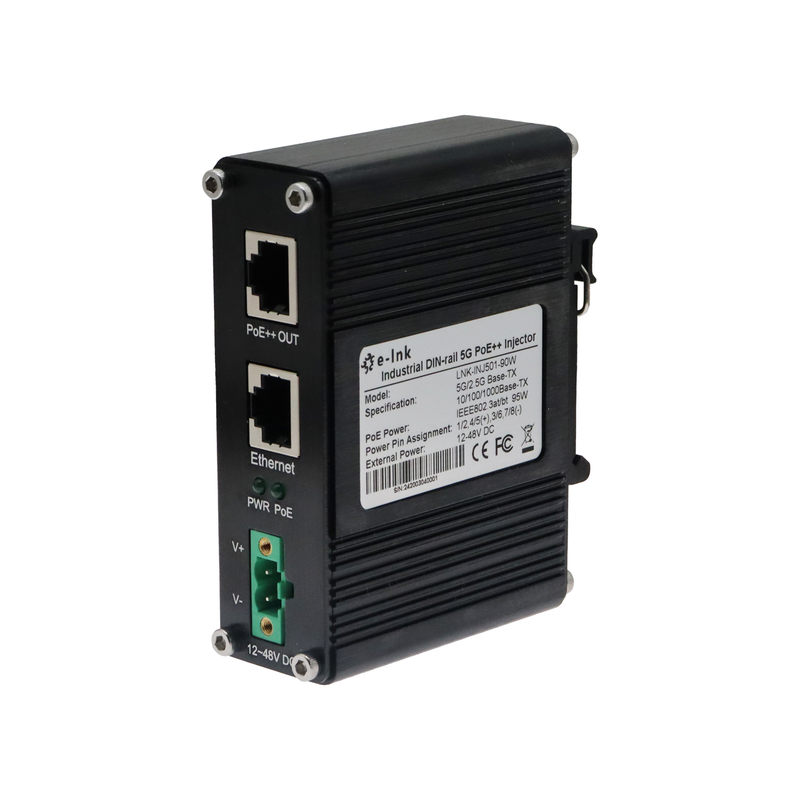

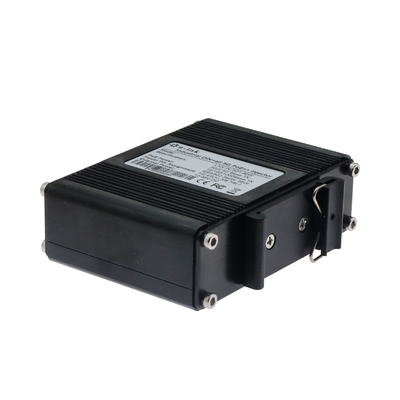

Large Image : Industrial 95W PoE++ Injector 802.3bt 12–48VDC Wide Input with Booster

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ501-90

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$88-$113
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

PoE Standard:	IEEE 802.3af/at/bt (PoE/PoE+/PoE++)	PoE Output:	Up To 95W (48V/24VDC), 60W (12VDC)
Data Speed:	10/100/1000/2.5G/5G Base-T	Ports:	1 × Data In + 1 × PoE Out (RJ45)
Power Input:	12–48VDC, Max 100W Consumption	Enclosure:	IP40 Aluminum Alloy, 95 × 70 × 30 Mm

Industrial 95W PoE++ Injector 802.3bt 12–48VDC Wide Input with Booster

Overview

The LNK-INJ501-90 is a rugged industrial-grade PoE++ injector engineered to deliver up to 95W of

high-power output for next-generation devices such as PTZ cameras, wireless access points, and IoT

terminals. With its flexible 12–48VDC power input and integrated booster, it ensures stable PoE

delivery even at lower voltages. Supporting 10/100/1000/2.5G/5G Base-T, it provides fast and reliable

connectivity for critical networks. Built with an IP40 aluminum housing and designed to operate in

extreme temperatures (-40°C to +80°C), it is an ideal solution for demanding industrial environments.

Features

Ultra-High Power PoE++ – Delivers up to 95W per port to support power-hungry devices.

Flexible Power Input – Wide 12–48VDC range with built-in voltage booster.

5G Network Ready – Compatible with 10/100/1000/2.5G/5G Base-T connections.

Industrial Reliability – Hardened design with -40°C to +80°C operating range.

Compact & Versatile – Slim 95 × 70 × 30 mm housing, DIN-rail & wall-mount supported.

Enhanced Safety – Surge protection (1KV), ESD up to 8KV, and IP40 casing.

LED Status Indicators – Quick diagnostics for power and PoE activity.

Technical Indexes

Ethernet
Standards:	10/100/1000/2.5G/5G BASE-T Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	7,440,000pps (5Gbps)
Cabling:	10/100/1000/2.5G/5G BASE-T: CAT7 or above
Maximum Distance:	CAT7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:	Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	IP40 Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Standard Accessories
Package Contents	LNK-INJ401-90
	User's manual
	Wall-mount kit
	DIN-mount kit
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ501-90	5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
