Industrial 5G 60W PoE+ Injector 12–48VDC Wide-Range Power Compact Rugged

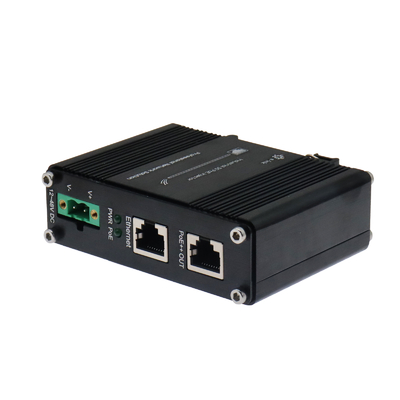

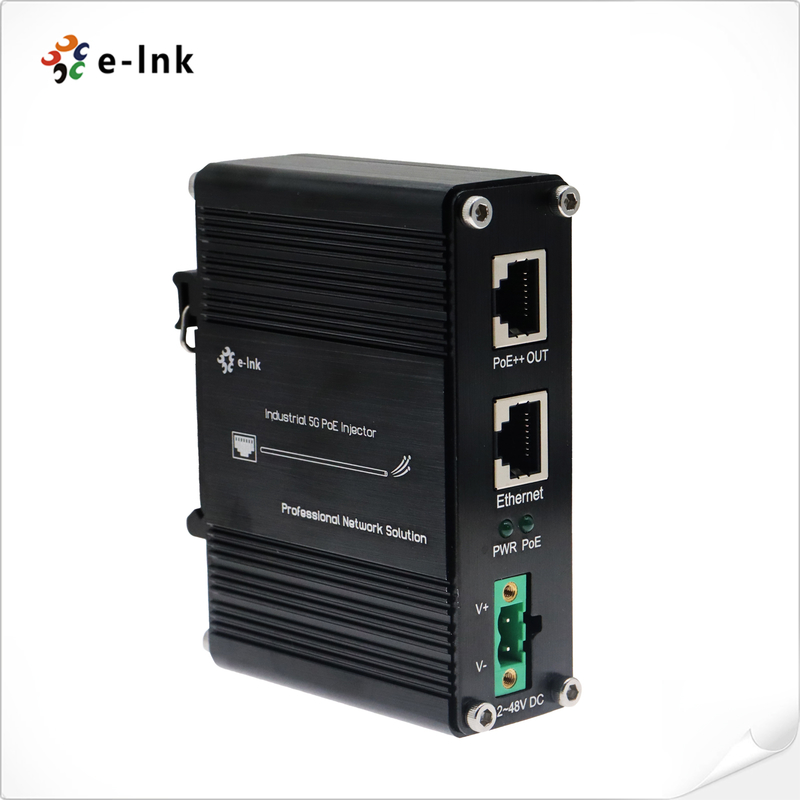

Large Image : Industrial 5G 60W PoE+ Injector 12–48VDC Wide-Range Power Compact Rugged

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ501-60

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$58-$68
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

PoE Output:	IEEE 802.3af/at, Up To 60W Max	Data Rate:	10/100/1000/2.5G/5G Base-T
Input Power:	12–48VDC, Max 65W	Ports:	1 × Data In + 1 × PoE Out (RJ45)
Distance:	Up To 30m (Cat7 Or Above)	Mounting:	DIN-rail / Wall-mount

Industrial 5G 60W PoE+ Injector 12–48VDC Wide-Range Power Compact Rugged

Overview

The LNK-INJ501-60 is a compact, industrial-grade 5G PoE+ injector designed to deliver up to 60W

high power output for demanding devices such as PTZ cameras, wireless APs, and network terminals.

With its wide 12–48VDC power input, rugged aluminum housing, and hardened operating temperature

range from -40°C to 80°C, it ensures stable and reliable performance in critical applications. Its dual

5G-capable RJ45 ports provide seamless connectivity while built-in surge and ESD protection maximize

network uptime.

Features

High Power PoE+ Output – Up to 60W per port, ideal for high-consumption devices.

Broad Power Input Range – Operates on 12–48VDC for versatile deployment.

5G Network Ready – Supports 10/100/1000/2.5G/5G Base-T transmission.

Industrial Durability – -40°C to 80°C operating range with aluminum alloy housing.

Compact Form Factor – Space-saving 95 × 70 × 30 mm design for DIN-rail or wall mount.

Diagnostics Made Simple – LED indicators for power and PoE status.

Enhanced Protection – Built-in surge (1KV), power (500V), and ESD safeguards.

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	7,440,000pps (5Gbps)
Cabling:	10/100/1000/2.5G/5G Base-T: Cat7 or above
Maximum Distance:	Cat7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	65W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ501-60	12~48VDC Power Input Industrial 5G 60W PoE Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
