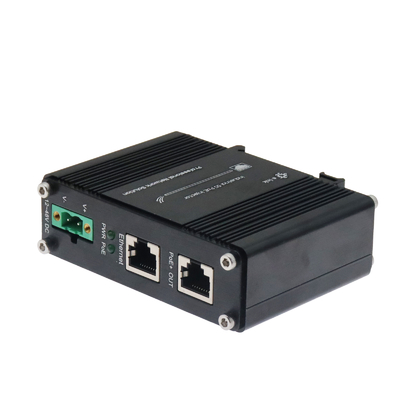

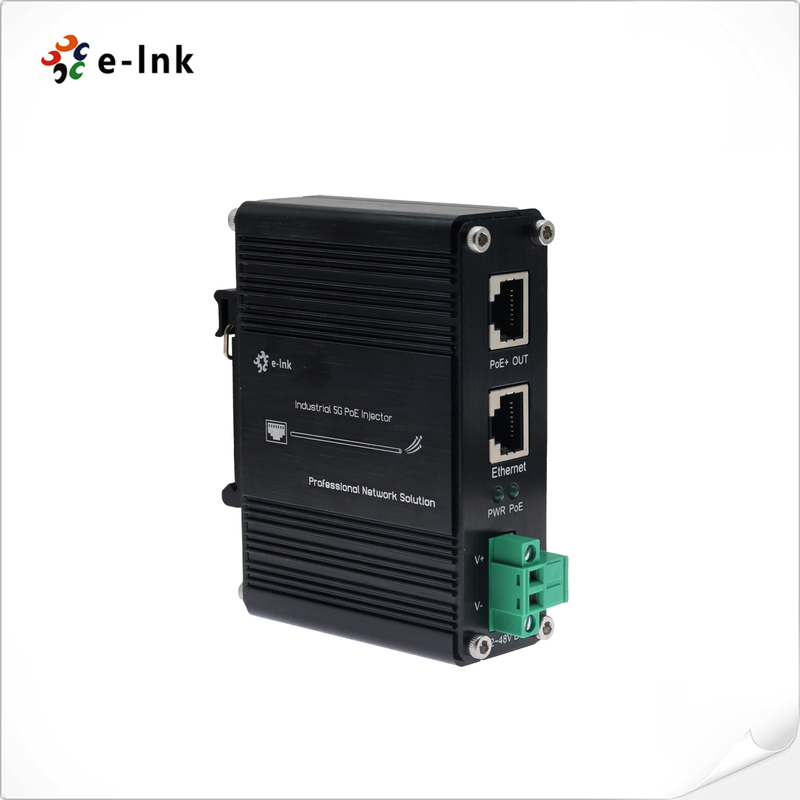

Compact Industrial 5G PoE+ Injector 30W Output 12–48V DC Input

Large Image : Compact Industrial 5G PoE+ Injector 30W Output 12–48V DC Input

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ501-30

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$53-$62
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Voltage:	12–48V DC (Terminal Block)	PoE Standard:	IEEE 802.3af/at Compliant
Data Rate:	10/100/1000/2.5G/5G Base-T	PoE Budget:	Up To 30W Per Port
Ports:	1x RJ45 Data In + 1x RJ45 PoE Out	Enclosure:	Compact Aluminum Alloy Housing

Compact Industrial 5G PoE+ Injector 30W Output 12–48V DC Input

Overview

The LNK-INJ501-30 is a rugged industrial-grade PoE+ injector engineered for high-speed 5G networks.

Delivering up to 30W of power and 5Gbps data throughput, it connects non-PoE switches to powered

devices such as surveillance cameras, access points, or sensors. With its wide 12–48V DC input, robust

aluminum enclosure, and hardened operating temperature range, it ensures reliable operation in

demanding industrial environments.

Features

High-Speed Connectivity: Supports up to 5Gbps data transmission

PoE+ Power: Provides up to 30W output for cameras, APs, and IoT devices

Wide Voltage Input: Operates on 12–48V DC for flexible deployment

Durable Design: Compact aluminum case with IP-rated resilience

Industrial Reliability: Works from -40°C to +80°C in harsh conditions

Flexible Install: DIN-rail and wall-mount options for easy setup

Diagnostic LEDs: Quick status monitoring for power and PoE

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	7,440,000pps (5Gbps)
Cabling:	10/100/1000/2.5G/5G Base-T: Cat7 or above
Maximum Distance:	Cat7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ501-30	12~48VDC Power Input Industrial 5G PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
