Rugged 95W Industrial 2.5G PoE++ Injector with Wide 12–48V DC Input

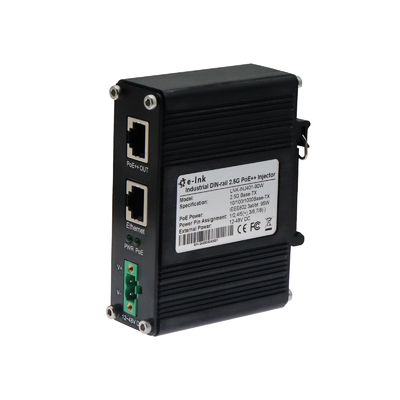

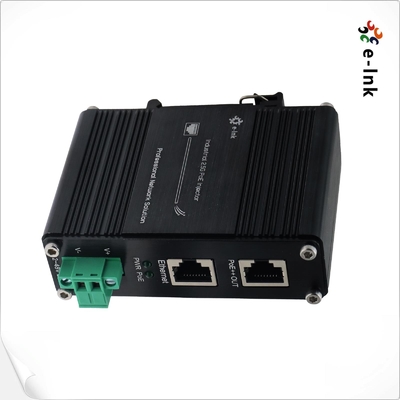

Large Image : Rugged 95W Industrial 2.5G PoE++ Injector with Wide 12–48V DC Input

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ401-90

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$78-$92
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Voltage:	12–48V DC, Terminal Block Connection	PoE Standards:	IEEE 802.3af/at/bt, LTPoE++ Up To 95W
Ethernet Ports:	1x Data In + 1x PoE Out (RJ45)	Network Speed:	10/100/1000/2.5G Base-T
Transmission Distance:	Up To 100m On Cat6A Cable	Operating Temp:	-40°F To +176°F (-40°C To +80°C)

Rugged 95W Industrial 2.5G PoE++ Injector with Wide 12–48V DC Input

Overview

The LNK-INJ401-90 is a high-performance industrial PoE++ injector that delivers up to 95W output for

next-generation powered devices, including PTZ cameras, wireless access points, and edge computing

equipment. Designed with a wide 12–48V DC input and integrated voltage booster, it ensures stable

performance even in environments with unstable power supply. With its hardened aluminum housing,

compact form factor, and broad operating temperature range, it provides reliable power and data

connectivity for mission-critical industrial networks.

Features

Ultra High Power: Supports up to 95W PoE++ for heavy-duty devices

Flexible Power Input: Operates on 12–48V DC with built-in booster

2.5G Throughput: Ensures fast data + power delivery over 100m

Industrial Durability: IP40 aluminum enclosure for harsh conditions

Wide Temperature Range: Reliable from -40°C to +80°C

Installation Versatility: DIN-Rail and wall-mount ready

LED Status Indicators: Quick diagnostics for power and PoE

Technical Indexes

Ethernet
Standards:	10/100/1000/2.5G BASE-T Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	3,720,000pps (2.5Gbps)
Cabling:	10/100/1000/2.5G BASE-T: CAT6 or above
Maximum Distance:	CAT6A UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:	Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	IP40 Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Standard Accessories
Package Contents	LNK-INJ401-90
	User's manual
	Wall-mount kit
	DIN-mount kit
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ401-90	2.5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
