Compact 12–48V Industrial 2.5G PoE+ Injector with 60W High Power Output

Large Image : Compact 12–48V Industrial 2.5G PoE+ Injector with 60W High Power Output

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ401-60

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$54-$62
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Power:	12–48V DC (via Terminal Block)	PoE Standard:	IEEE 802.3af/at Compliant
Max PoE Power:	60W Per Port	Ethernet Ports:	1x RJ45 Data In + 1x RJ45 PoE Out
Throughput:	Supports Up To 2.5Gbps	Operating Temp:	-40°F To 176°F (-40°C To 80°C)

Compact 12–48V Industrial 2.5G PoE+ Injector with 60W High Power Output

Overview

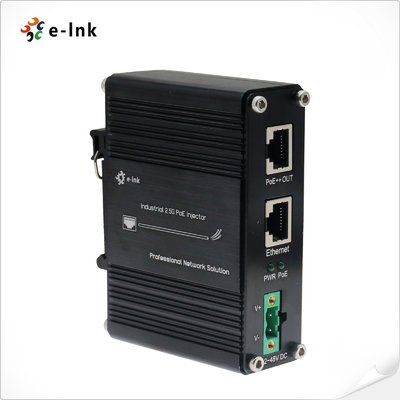

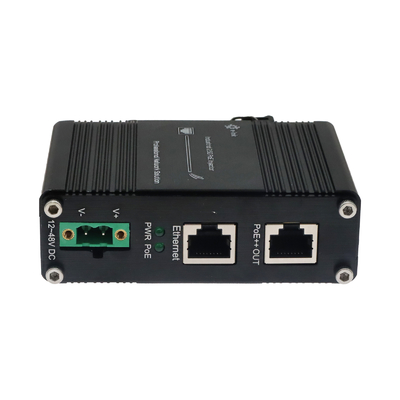

The LNK-INJ401-60 is a ruggedized high-power PoE injector that delivers up to 60W output for

advanced devices such as PTZ cameras, wireless APs, and industrial IoT equipment. Supporting 2.5G

Ethernet and wide 12–48V DC input, it ensures seamless power and data transmission over 100 meters.

With its hardened aluminum housing, compact size, and wide temperature tolerance, this injector is ideal

for demanding field applications.

Features

High Power Capacity: Provides up to 60W per port for power-hungry devices

Flexible Voltage: Operates with 12–48V DC power input

2.5G Speed Support: Handles 10/100/1000/2.5G Base-T networks

Durable Build: Compact aluminum alloy casing for harsh environments

Wide Temperature Range: Reliable from -40°C to +80°C

Installation Options: Supports DIN-Rail and wall mounting

Status at a Glance: LED indicators for power and PoE monitoring

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	3,720,000pps (2.5Gbps)
Cabling:	10/100/1000/2.5G Base-T: Cat6A or above
Maximum Distance:	Cat6A UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	65W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ401-60	12~48VDC Power Input Industrial 2.5G 60W PoE Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
