Rugged 12–48V 2.5G Industrial PoE+ Injector with 30W Output

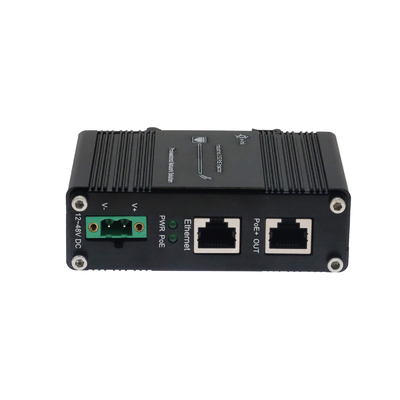

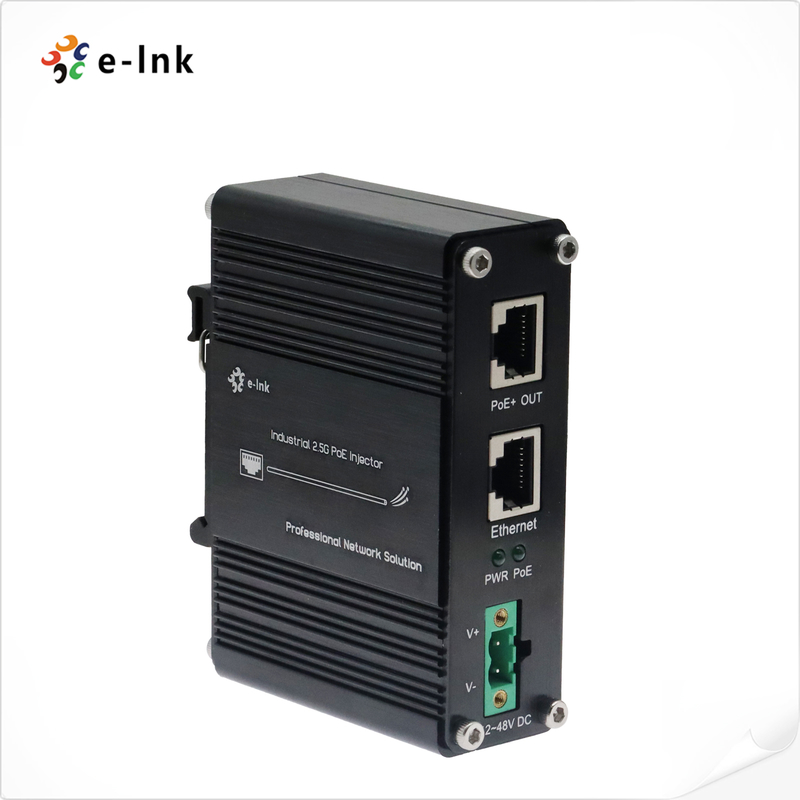

Large Image : Rugged 12–48V 2.5G Industrial PoE+ Injector with 30W Output

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ401-30

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$48-$58
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Power Input:	12–48V DC Via Terminal Block	PoE Standard:	IEEE802.3af/at (PoE+)
PoE Power:	Up To 30W Max Output	Ethernet Ports:	1x RJ45 Data In + 1x RJ45 PoE Out
Data Speed:	10/100/1000/2.5GBase-T (Cat6A Or Above)	Operating Temp:	-40°F To 176°F (-40°C To 80°C)

Rugged 12–48V 2.5G Industrial PoE+ Injector with 30W Output

Overview

The LNK-INJ401-30 is a compact and hardened industrial-grade PoE+ injector designed to provide up

to 30W of power to connected devices such as IP cameras, wireless APs, and IoT terminals. With

support for 10/100/1000/2.5G Base-T, wide 12–48V DC input, and extended temperature operation, it

delivers a reliable solution for powering PoE+ equipment in harsh industrial environments.

Features

Flexible Power Input: Operates on 12–48V DC for versatile deployment

High-Speed Data: Supports up to 2.5Gbps Ethernet transmission

PoE+ Output: Provides up to 30W per port, compliant with IEEE802.3af/at

Industrial Design: Aluminum alloy case with DIN-Rail and wall-mount options

Wide Temp Range: Stable performance from -40°C to +80°C

Compact Build: Small size (95 x 70 x 30 mm) and lightweight (0.25 kg)

Smart Diagnostics: LED indicators for quick power and PoE status monitoring

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	3,720,000pps (2.5Gbps)
Cabling:	10/100/1000/2.5G Base-T: Cat6A or above
Maximum Distance:	Cat6A UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ401-30	12~48VDC Power Input Industrial 2.5G PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
