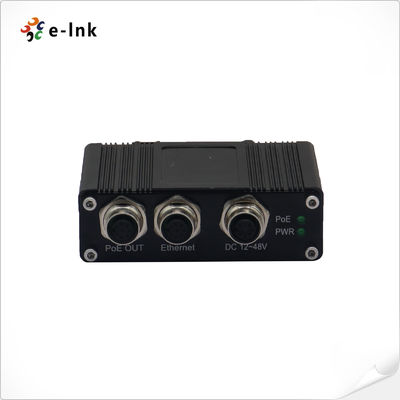

EN50155 Industrial 10/100/1000M/2.5G/5G/10G 90W PoE Injector with M12 connector
Industrial 95W PoE Injector Overview
E-link EN50155 PoE Injector is an advanced IEEE802.3bt compliant device with Intelligent Detection that provides 1-port 10/100/1000/2.5G/5G/10G Base-T(X) PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage to non-PoE compliant devices which may be connected to the Ethernet cable.
Industrial 95W PoE Injector Features
► Fully compliant with IEEE802.3af/at/bt
► Support 10/100/1000/2.5G/5G/10G Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Use M12 connectors (A-Coding or X-Coding) to ensure tight and robust connections
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 95W PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
10/100/1000/2.5G/5G/10G BASE-T Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
14,880,000pps (10Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G/10G BASE-T: CAT7 or above
|
|
Maximum Distance:
|
CAT7 UTP up to 30m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
100W Max.
|
|
Power over Ethernet:
|
|
Standard:
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
|
|
PoE Budget:
|
Up to 95-watt PoE budget (48VDC)
Up to 95-watt PoE budget (24VDC)
Up to 60-watt PoE budget (12VDC)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
IP40 Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Standard Accessories
|
|
Package Contents
|
LNK-INJ401-90
|
|
User's manual
|
|
Wall-mount kit
|
|
DIN-mount kit
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 95W PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ601-90-M12
|
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G 90W M12 PoE Injector 12~48V DC Power Input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
