EN50155 10G 90W Industrial PoE Injector with Rugged M12 Connectors 12–48V

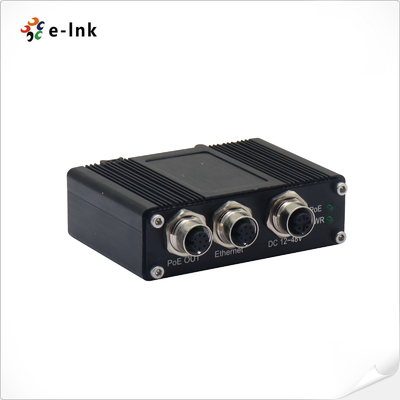

Large Image : EN50155 10G 90W Industrial PoE Injector with Rugged M12 Connectors 12–48V

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ601-90-M12

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$209-$231
Packaging Details:	PoE Injector Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

PoE Power:	Up To 90W Per Port (IEEE802.3af/at/bt)	Data Rates:	10/100/1000M/2.5G/5G/10G Base-T(X)
Input Voltage:	12–48V DC, Wide Range For Industrial Power Systems	Interfaces:	2× M12 Connectors (8-pin A-Coding Default, X-Coding Optional)
Durability:	Aluminum Housing, EN50155 Vibration & Shock Resistant	Protection:	Surge (RJ45: 1KV, Power: 500V), ESD 4KV/8KV

EN50155 10G 90W Industrial PoE Injector with Rugged M12 Connectors 12–48V

Overview

The LNK-INJ601-90-M12 is a 90W high-power PoE injector tailored for transportation and harsh

industrial networks. Supporting 10 Gigabit Ethernet, it ensures seamless power and data transmission

over a single cable. Certified to EN50155 railway standards, the injector withstands vibration, shock,

and extreme climates. With robust M12 connectors and wide-range 12–48V DC input, it is engineered

for demanding applications such as rolling stock, vehicles, and outdoor systems.

Features

Up to 90W PoE output (IEEE802.3af/at/bt compliant)

Supports 10/100/1000M/2.5G/5G/10G high-speed transmission

Rugged M12 connectors (A- or X-Coding) for secure, vibration-proof links

Railway-grade EN50155 compliance for transportation networks

-40°C to +80°C operating range, designed for harsh environments

Compact & lightweight (95 × 70 × 30 mm, 0.25 kg) aluminum enclosure

Flexible mounting: DIN-Rail or wall installation

Intelligent device detection prevents damage to non-PoE equipment

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,0000pps (10Gbps)
Cabling:	10/100/1000/2.5G/5G/10G Base-T
Connector:	2x M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48V DC
Power Port	4-pin female M12 A-Coding
Power Consumption:	95W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at/bt
Port:	M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Max. Power per Port:	90W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status

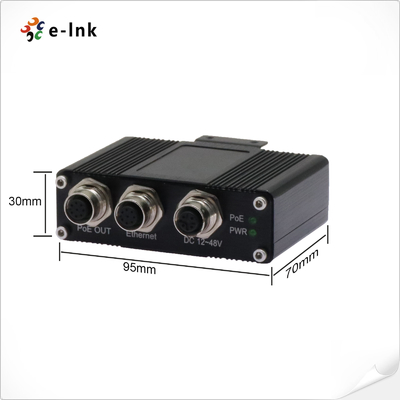

Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ601-90-M12	EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G 90W M12 PoE Injector 12~48V DC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
