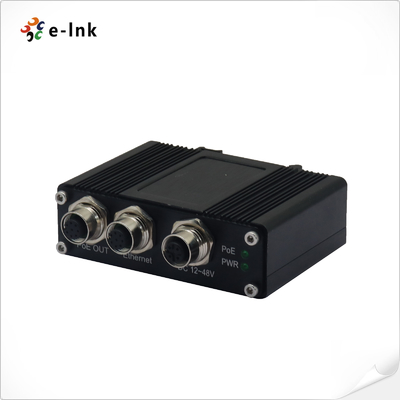

EN50155 10G Industrial 30W PoE Injector with Rugged M12 Connectors 12–48V

Large Image : EN50155 10G Industrial 30W PoE Injector with Rugged M12 Connectors 12–48V

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ601-M12

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$109-$131
Packaging Details:	PoE Injector Stand Export Package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Compliance:	EN50155, IEEE802.3af/at (PoE+)	Input Voltage:	12–48V DC Wide Range
PoE Power:	Up To 30W Per Port	Data Speeds:	10/100/1000M/2.5G/5G/10G Base-T(X)
Interfaces:	2× M12 Connectors (8-pin A-Coding Default, X-Coding Optional)	Operating Temp:	-40°C To +80°C (extended Industrial Grade)

EN50155 10G Industrial 30W PoE Injector with Rugged M12 Connectors 12–48V

Overview

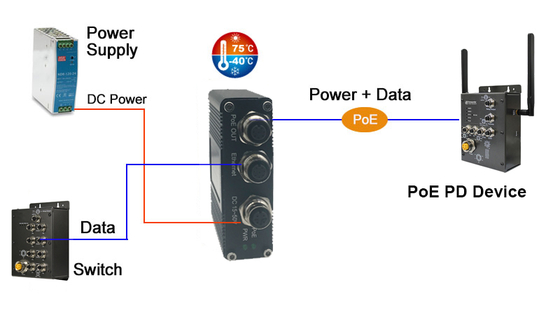

The LNK-INJ601-M12 is a compact, EN50155-certified PoE injector designed for mission-critical railway

and vehicle systems. Supporting Ethernet speeds up to 10 Gigabit, it delivers reliable 30W PoE+ power

over a robust M12 interface, ensuring uninterrupted connectivity in environments subject to vibration,

shock, and extreme temperatures. Its intelligent detection safeguards connected devices, while flexible

DIN-Rail or wall mounting makes deployment simple in space-constrained installations.

Features

10G-ready performance for high-bandwidth onboard applications

30W PoE+ output, IEEE802.3af/at compliant

EN50155-certified for railway and rolling stock systems

Wide input voltage: 12–48V DC for reliable power integration

M12 connectors (A- or X-Coding) for vibration-proof connections

Extended operating range: -40°C to +80°C

Durable aluminum housing, ultra-compact 95 × 70 × 30 mm design

Flexible mounting options: DIN-Rail or wall installation

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,0000pps (10Gbps)
Cabling:	10/100/1000/2.5G/5G/10G Base-T
Connector:	2x M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48V DC
Power Port	4-pin female M12 A-Coding
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Max. Power per Port:	30W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ601-M12	EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G M12 PoE Injector 12~48V DC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
