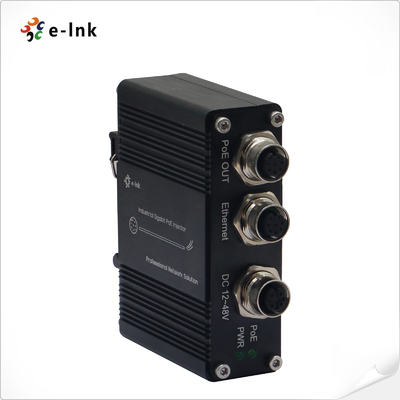

EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V

Large Image : EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ501-90-M12

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$131-$161
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Compliance:	EN50155, IEEE802.3af/at/bt (PoE++)	Input Voltage:	12–48V DC Wide Range
PoE Power:	Up To 90W Per Port	Data Rates:	10/100/1000M/2.5G/5G Base-T(X)
Protection:	Surge (RJ45: 1KV, Power: 500V), ESD 4KV/8KV	Operating Temp:	-40°C ~ +80°C For Extreme Environments

EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V

Overview

The LNK-INJ501-90-M12 is a high-power industrial PoE injector engineered for EN50155 railway and

transportation environments. Delivering up to 90W PoE++ output and supporting multi-gigabit Ethernet

speeds up to 5Gbps, it ensures reliable power and data for demanding onboard systems such as IP

cameras, access points, and displays. With robust M12 connectors, a hardened aluminum casing, and

an extended temperature range, it guarantees dependable operation in harsh, vibration-prone

environments.

Features

EN50155 certified – built for railway and vehicle deployments

Wide input voltage: 12–48V DC, high availability applications

Supports multi-gigabit 10/100/1000M/2.5G/5G Base-T Ethernet

High-power PoE++ output up to 90W, IEEE802.3af/at/bt compliant

M12 connectors (A- or X-Coding) for shock- & vibration-proof networking

Extended temperature range: -40°C to +80°C operation

Durable aluminum case, compact size: 95 × 70 × 30 mm, 0.25 kg

Flexible mounting: DIN-Rail or Wall-mount options

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	7,440,000pps (5Gbps)
Cabling:	10/100/1000/2.5G/5G Base-T
Connector:	2x M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48V DC
Power Input	4-pin female M12 A-Coding
Power Consumption:	95W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at/bt
Port:	M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Max. Power per Port:	90W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status

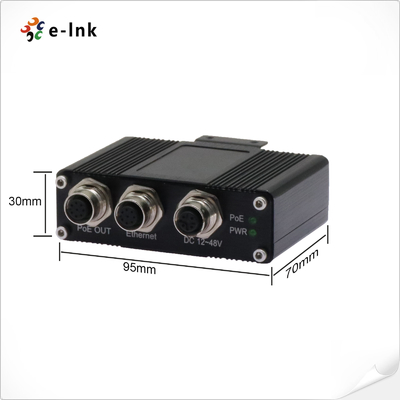

Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ501-90-M12	EN50155 Industrial 1-port 10/100/1000M/2.5G/5G 90W M12 PoE Injector 12~48V DC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
