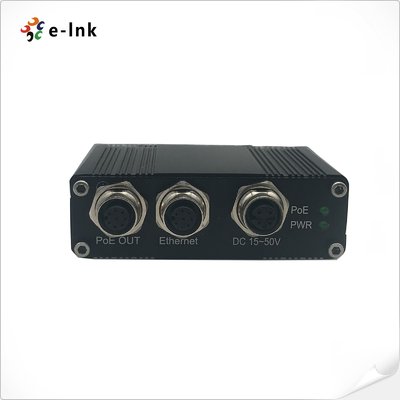

EN50155 Rugged 5G PoE Injector with M12 Connector 12–48V DC 30W Output

Large Image : EN50155 Rugged 5G PoE Injector with M12 Connector 12–48V DC 30W Output

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ501-30-M12

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$99-$121
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3~8 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Compliance:	EN50155, IEEE802.3af/at	Input Voltage:	12–48V DC
PoE Power:	30W Max, Intelligent Device Detection	Ethernet Speeds:	10/100/1000M/2.5G/5G Base-T(X)
Connectors:	2 × M12 (A-Coding Standard, X-Coding Optional)	Durability:	IP-rated Aluminum Case, Vibration/shock Resistant

EN50155 Rugged 5G PoE Injector with M12 Connector 12–48V DC 30W Output

Overview

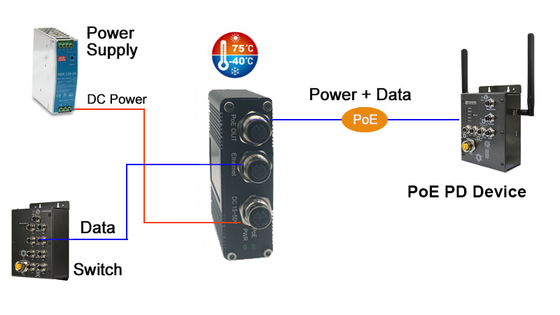

The LNK-INJ501-30-M12 is a railway-grade EN50155 compliant industrial PoE injector, engineered for

rolling stock and harsh transportation environments. With robust M12 connectors, it ensures secure and

vibration-resistant connections. Supporting up to 5Gbps Ethernet speeds and 30W PoE power output, it

delivers high-performance networking and reliable power to onboard devices such as IP cameras and

access points.

Features

EN50155 compliant – ideal for railway and vehicle applications

Wide power input: 12–48V DC for flexible deployment

High-speed support: 10/100/1000M/2.5G/5G Ethernet

30W PoE+ output with IEEE802.3af/at intelligent detection

Rugged design with M12 connectors (A- or X-Coding) for shock & vibration resistance

Hardened operation: -40°C to +80°C temperature range

Compact & lightweight: 95 × 70 × 30 mm, 0.25 kg

DIN-Rail & Wall-mount installation options

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	7,440,000pps (5Gbps)
Cabling:	10/100/1000/2.5G/5G Base-T
Connector:	2x M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48V DC
Power Port	4-pin female M12 A-Coding
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Max. Power per Port:	30W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ501-30-M12	EN50155 Industrial 1-port 10/100/1000M/2.5G/5G M12 PoE Injector 12~48V DC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
