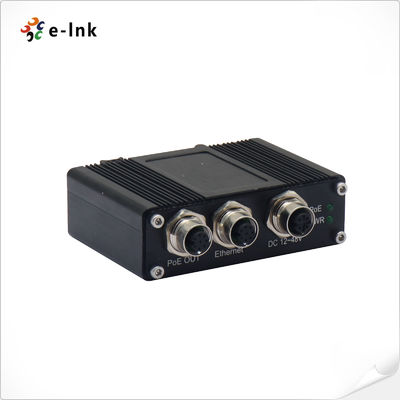

EN50155 Industrial 10/100/1000M/2.5G/5G/10G 30W PoE Injector with M12 Connector
Industrial 10G PoE Injector with M12 Connector Overview
E-link EN50155 compliant PoE Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provides 1-port 10/100/1000/2.5G/5G/10G Base-T(X) PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage to non-PoE compliant devices which may be connected to the Ethernet cable.
LNK-INJ601-M12 provides an integrated power solution with a wide range voltage of 12~48V DC for high availability applications.
Industrial 10G PoE Injector with M12 Connector Features
► Support 10/100/1000/2.5G/5G/10G Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► 12~48V DC Power Input
► Use M12 connectors (A-Coding or X-Coding) to ensure tight and robust connections
► Small Size: 95 x 70 x 30mm
► Weight: 0.25KG
► Aluminum Case
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 10G PoE Injector with M12 Connector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
14,880,000pps (10Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G/10G Base-T: Cat7 or above
|
|
Maximum Distance:
|
Cat7 UTP up to 30m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
36W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
Max. Power per Port:
|
30W Max per port (Alternative B Mode)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 10G PoE Injector with M12 Connector Ordering Information
|
Model
|
Description
|
|
LNK-INJ601-M12
|
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G M12 PoE Injector 12~48V DC Power Input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
Industrial 10G PoE Injector with M12 Connector Application
