Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 2.5G 95W PoE++ Injector Overview

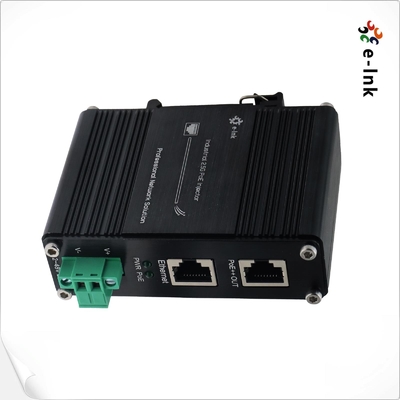

The LNK-INJ401-90 is an industrial-grade, hardened, 2.5G PoE injector that delivers a high-power
output of 95W, complying with the IEEE 802.3bt and LTPoE++ standards. This single-port injector
enables seamless connectivity between non-PoE network switches and high-power PoE devices,
such as PTZ cameras and wireless access points, over distances of up to 100 meters. It supports
data rates of 10/100/1000/2500 Mbps on both the Ethernet and PoE ports and features a wide 12–48 V DC
input range with voltage booster technology. This allows for reliable operation in demanding environments
where stable power delivery is critical.
Industrial 2.5G 95W PoE++ Injector Features
-
Dual RJ45 Ports: 1 Ethernet Data Input and 1 PoE Output Port for simultaneous data and power transmission.
-
High-Power PoE Output: Supports 95W LTPoE++ for demanding powered devices.
-
Standards Compliance: Fully compliant with IEEE 802.3at/bt PoE end-span and mid-span PSE standards.
-
High-Speed Network Support: Compatible with 10/100/1000/2.5G Base-TX connections.
-
LED Status Indicators: Provides clear and comprehensive PoE and network diagnostics.
-
Wide-Range Power Input: 12~48V DC with built-in power booster function for stable performance.
-
Flexible PoE Budget:
-
95W PoE budget @ 48VDC
-
95W PoE budget @ 24VDC
-
60W PoE budget @ 12VDC
-
Rugged Industrial Design: Operates reliably in extreme temperatures from -40°C to 80°C (-40°F to 176°F).
-
Versatile Installation: Supports both DIN-rail and wall-mount setups.
Industrial 2.5G 95W PoE++ Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
10/100/1000/2.5G BASE-T Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
3,720,000pps (2.5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G BASE-T: CAT6 or above
|
|
Maximum Distance:
|
CAT6A UTP up to 100m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
100W Max.
|
|
Power over Ethernet:
|
|
Standard:
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
|
|
PoE Budget:
|
Up to 95-watt PoE budget (48VDC)
Up to 95-watt PoE budget (24VDC)
Up to 60-watt PoE budget (12VDC)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
IP40 Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Standard Accessories
|
|
Package Contents
|
LNK-INJ401-90
|
|
User's manual
|
|
Wall-mount kit
|
|
DIN-mount kit
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 2.5G 95W PoE++ Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ401-90
|
2.5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector
with 12~48V DC wide range power input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
