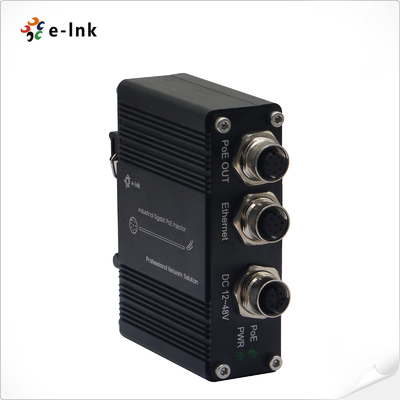

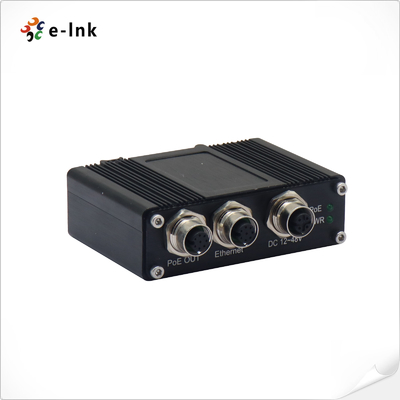

EN50155 2.5G Industrial 30W PoE Injector with Rugged M12 Connectors 12–48V DC
Overview
The LNK-INJ401-30-M12 is a compact, EN50155-certified industrial PoE injector designed
for mission-critical applications in railway, vehicle, and rolling stock environments. Supporting
IEEE802.3af/at standards, it delivers up to 30W of power with Gigabit and 2.5G Base-T(X)
data speeds. Featuring secure M12 connectors, wide 12–48V DC input, and an extended
-40°C to +80°C operating temperature range, it ensures reliable operation under shock,
vibration, and other extreme conditions.
Features
EN50155 certified for railway and vehicle applications
Supports 10/100/1000/2.5G Base-T(X) high-speed data + power output
IEEE802.3af/at compliant, up to 30W PoE per port
Rugged M12 connectors (A-Coding default, X-Coding optional)
Wide 12–48V DC input power range with integrated protection
Compact aluminum housing: 95 × 70 × 30 mm, only 0.25 kg
Hardened design: -40°C to +80°C temperature tolerance
DIN-Rail & Wall-mount installation options
Intelligent PoE detection prevents damage to non-PoE devices
Built-in surge, ESD, and overload protection
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
3,720,000pps (2.5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G Base-T
|
|
Connector:
|
2x M12 connector (default 8-pin female M12 A-coding, X-coding optional)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48V DC
|
|
Power Port
|
4-pin female M12 A-Coding
|
|
Power Consumption:
|
36W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
M12 connector (default 8-pin female M12 A-coding, X-coding optional)
|
|
Max. Power per Port:
|
30W Max
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A, EN50155
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Ordering Information
|
Model
|
Description
|
|
LNK-INJ401-30-M12
|
EN50155 Industrial 1-port 10/100/1000M/2.5G M12 PoE Injector 12~48V DC Power Input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
