EN50155 Industrial 90W Gigabit PoE Injector with M12 Connector 12–48V DC

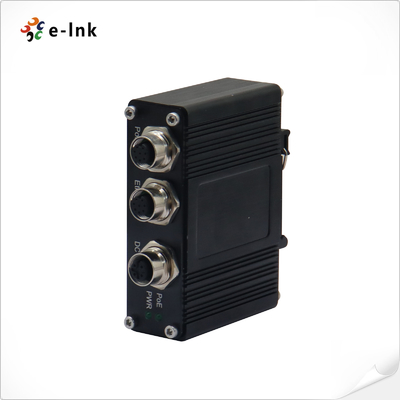

Large Image : EN50155 Industrial 90W Gigabit PoE Injector with M12 Connector 12–48V DC

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-INJ301-90-M12
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$109-$129
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-8 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Standard:	IEEE802.3af/at/bt, Gigabit PoE+ / PoE++	Input Power:	12~48V DC Via M12 A-Coding
Output Power:	1 Port, Up To 90W PoE	Connectors:	2x M12 (8-pin, A-Coding Default; X-Coding Optional)
Temperature:	-40°C ~ +80°C	Mounting:	DIN-Rail / Wall-mount

EN50155 Industrial 90W Gigabit PoE Injector with M12 Connector 12–48V DC

Overview

The LNK-INJ301-90-M12 is a rugged EN50155-compliant Gigabit PoE injector designed for railway,

vehicle, and other harsh industrial environments. Supporting IEEE802.3af/at/bt standards, it delivers up

to 90W per port over reliable M12 connectors, ensuring secure connections under vibration and shock.

With its wide 12–48V DC input, aluminum casing, and extended -40°C to +80°C operating range, it is

an ideal power solution for on-board and field applications.

Features

EN50155 certified for railway and rolling stock applications

Supports IEEE802.3af/at/bt, up to 90W PoE output

Gigabit 10/100/1000Base-T(X) for high-speed data & power delivery

Secure M12 connectors (A-Coding or X-Coding optional)

Wide 12~48V DC input range with up to 95W max power

IP-rated aluminum case, compact 95 × 70 × 30 mm design

Reliable operation in -40°C to +80°C harsh environments

DIN-Rail & wall-mount installation options

Surge, ESD, overcurrent and overload protection

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T
Connector:	2x M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48V DC
Power Port	4-pin female M12 A-Coding
Power Consumption:	95W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at/bt
Port:	M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Max. Power per Port:	90W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ301-90-M12	EN50155 Industrial 1-port 10/100/1000M 90W M12 PoE Injector 12~48V DC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
