Industrial Gigabit PoE+ Injector, 80-320VDC Wide Input, -40 - 80°C

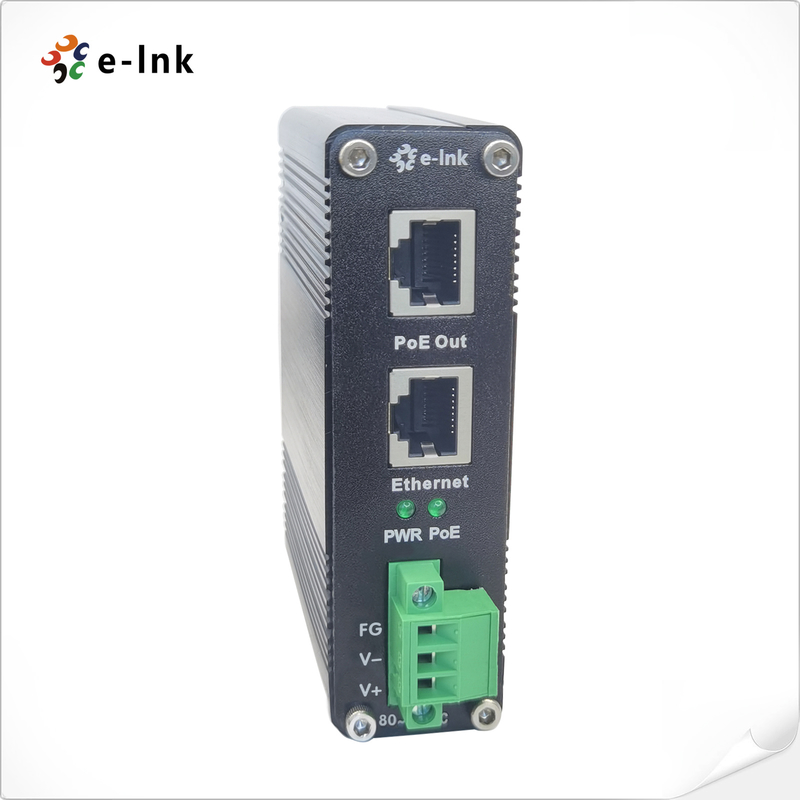

Large Image : Industrial Gigabit PoE+ Injector, 80-320VDC Wide Input, -40 - 80°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-INJ832
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$79-$105
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-8 working days
Payment Terms:	T/T,MoneyGram,Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Input Voltage:	80~320VDC (Terminal Block)	PoE Output:	Up To 30W Per Port (IEEE 802.3af/at)
Ethernet Ports:	2x RJ45, 10/100/1000Base-T	Casing:	Rugged IP40 Aluminum Housing
Temperature:	-40°C ~ +80°C	Mounting:	DIN-Rail / Wall-mount

Industrial Gigabit PoE+ Injector, 80-320VDC Wide Input, -40 - 80°C

Overview

The LNK-INJ832 is a ruggedized industrial PoE+ injector with a wide 80–320VDC input,

delivering up to 30W of power per port. Designed with IP40 aluminum housing, it ensures

reliable Gigabit data and PoE transmission in harsh environments. Supporting both DIN-Rail

and wall-mount installation, it is ideal for industrial surveillance, automation, and outdoor

networking applications.

Features

Wide 80~320VDC input range for flexible deployment

IEEE 802.3af/at compliant, up to 30W PoE+ output

Gigabit speed on both Data In and PoE Out ports

IP40 aluminum casing with natural heat dissipation

-40°C to +80°C operating temperature for extreme conditions

Supports DIN-Rail & wall-mount installation

Surge and ESD protection for enhanced reliability

Extensive LED indicators for easy status monitoring

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	80~320VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ832	80~320VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
