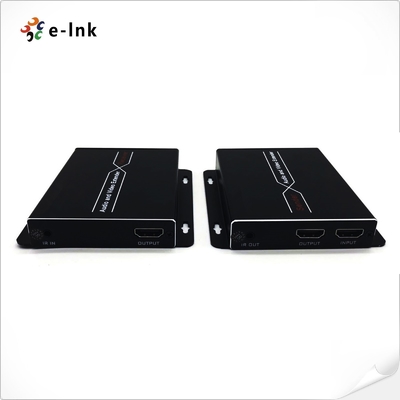

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m)
HDMI Extender Overview
This professional HDMI extender kit features matched transmitter and receiver units that deliver
full HD 1080p@60Hz signals over standard CAT5e/6 UTP network cables. With an impressive
range of 120 meters, the kit supports both point-to-point and point-to-multipoint distribution through
standard Ethernet switches over IP networks. Built-in EDID management ensures optimal device
compatibility and plug-and-play operation while maintaining stable, high-quality signal transmission
over long distances. Ideal for conference systems, digital signage, educational environments,
and broadcast applications, this cost-effective solution offers easy installation and reliable
performance for professional audio-visual distribution needs.
HDMI Extender Features
► Slim aluminum shell with compact, wall-mountable design and strong anti-interference
► Uncompressed transmission with zero latency
► Automatic cable length adjustment
► Supports resolutions up to 1080P@60Hz
► Extends HDMI signals up to 60m over a single CAT6/6a/7 cable
► EDID pass-through for seamless source and display matching
► Single power adapter required at TX; RX powered via network cable
HDMI Extender Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
HDMI 1.3; HDCP 1.2
|
|
Maximum pixel clock
|
165MHz
|
|
Maximum data rate
|
6.75Gbps
|
|
Resolution
|
Max: 1920X1080@60Hz
|
|
Connector
|
HDMI-A
|
|
Impedance
|
100Ω
|
|
IR
|
Interface
|
3.5mm earphone seat
|
|
Signal direction
|
Unidirectional
|
|
Signal type
|
Digital
|
|
IR frequency
|
38kHz
|
|
Ethernet
|
Interface
|
RJ45(568B)
|
|
Transmission distance
|
UTP CAT5e---120m
|
|
Other
|
Power supply
|
The power adapter: DC 5V
|
|
Power dissipation
|
MAX 4W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension
|
100*97.5*17mm
|
|
The warranty
|
1 year free warranty
|
HDMI Extender Ordering Information
|
Part No
|
Description of product
|
|
LNK-HDE-120
|
HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m), including 1 Transmitter & 1 Receiver, used by pairs
|
HDMI Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
