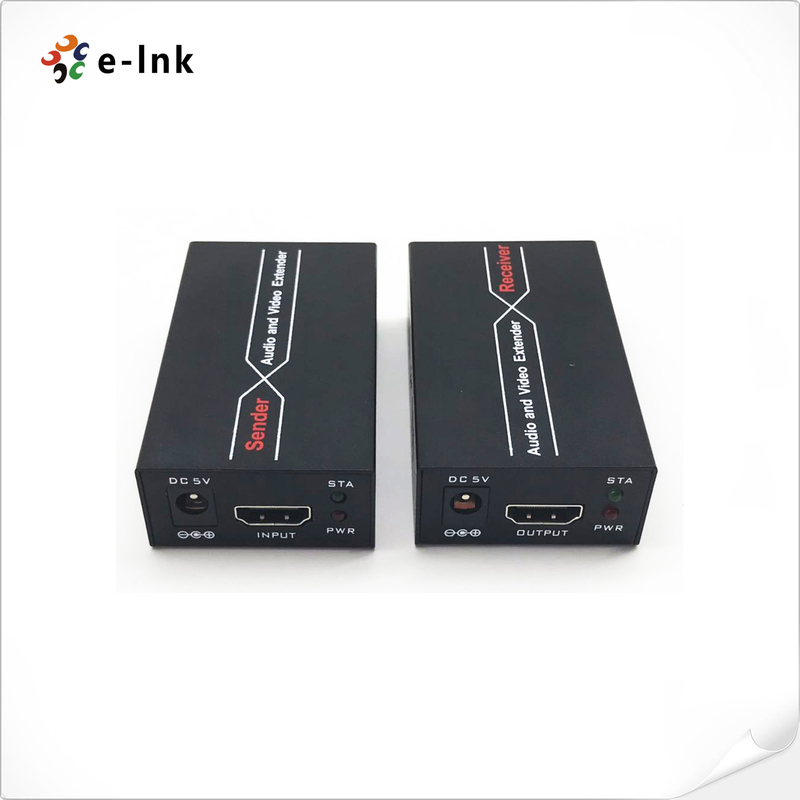

60M 1080P@60Hz HDMI Extender over cat6 with POC Function
HDMI Extender with POC Function Overview
This professional HDMI extender kit features matched transmitter and receiver units that deliver
uncompressed 1080p@60Hz HD signals over standard CAT6, 6A, or 7 cabling. With zero latency
and a reliable 60-meter range, the kit maintains perfect signal integrity. Built-in EDID management
ensures broad device compatibility, and support for keyboard/mouse remote control (KVM) and local
loop-out provides flexible connectivity. The innovative PoE capability allows either unit to be powered
through the network cable when connected to a power source. Ideal for conference rooms, classrooms,
digital signage, and video production, this extender offers an easy-to-install, cost-effective solution
for professional AV applications requiring stable, long-distance transmission.
HDMI Extender with POC Function Features
► Uncompressed transmission with zero latency
► Automatic cable length adjustment
► Supports resolutions up to 1080P@60Hz
► Extends HDMI signals up to 60m over a single CAT6/6a/7 cable
► EDID pass-through for seamless source and display matching
► Single power adapter required at TX; RX powered via network cable
HDMI Extender with POC Function Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
HDMI 1.3; HDCP 1.3
|
|
Maximum pixel clock
|
165MHz Digital
|
|
Maximum data rate
|
6.75Gbps
|
|
Resolution
|
3D:1080p@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz,
|
|
HDMI
|
Impedance
|
100Ω
|
|
Connector
|
HDMI-A
|
|
HDMI cable
|
Less than 5m at 1080p@60hz
|
|
RJ45
|
Interface
|
RJ45
|
|
Transmission distance
|
CAT6/7--- 60m at 1080p@60hz
|
|
Network cable
|
Low resistance and consumption oxygen-free copper core (CAT6,CAT6A,CAT7)-UTP
|
|
Other
|
Power supply
|
The power adapter: DC 5V/1A
|
|
Power dissipation
|
MAX 3W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension
|
79*43*23mm
|
|
The warranty
|
1 year free warranty
|
HDMI Extender with POC Function Ordering Information
|
Part No
|
Description of product
|
|
LNK-HDE-60
|
60M 1080P@60Hz HDMI Extender over cat6 with POC Function
|
HDMI Extender with POC Function Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
