60M 1080P HDMI KVM Extender with Loop-out
HDMI Extender with Loopout Overview

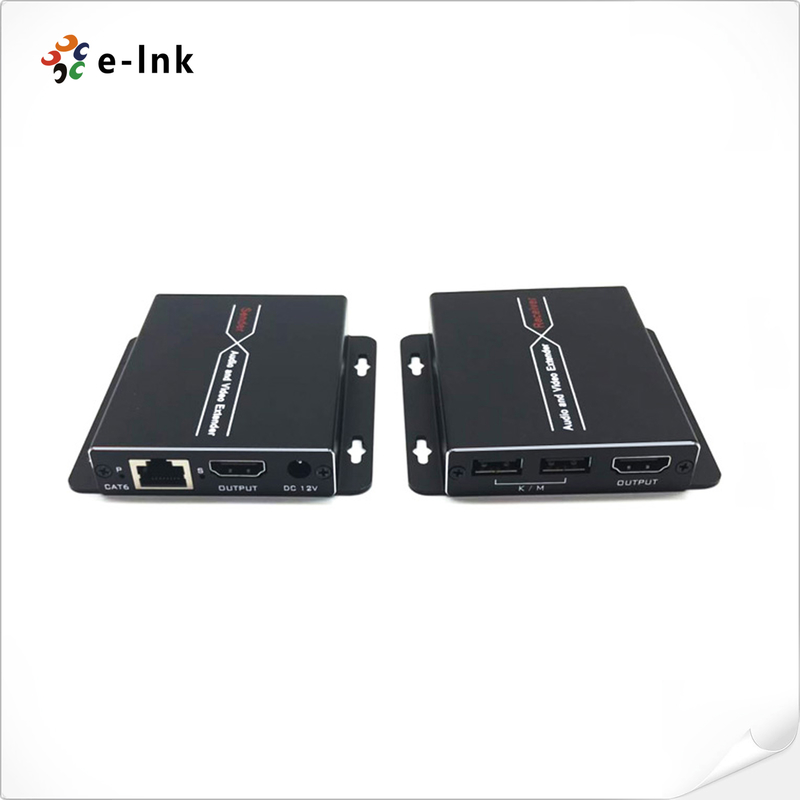

This professional HDMI extender kit includes a transmitter (TX) and a receiver (RX) that work together
to deliver uncompressed, full HD (1080p @ 60 Hz) signals via a single CAT6, CAT6A, or CAT7 cable.
With zero latency and an extended range of up to 60 meters, the kit ensures flawless audio-video
synchronization. It features built-in EDID management for enhanced device compatibility
and supports keyboard and mouse remote control (KVM), local loop-out, and PoE functionality
(powering the receiver via the transmitter through the network cable). This extender is ideal
for conference systems, digital signage, education, and video production. It offers a stable,
cost-effective, and easy-to-install solution for professional AV applications.
HDMI Extender with Loopout Features
► Slim aluminum shell design, compact, stylish, and highly anti-interference; wall-mountable for easy installation
► Uncompressed HDMI video/audio transmission up to 60m over a single CAT6 cable
► Supports resolutions up to 1920×1080@60Hz and 3D signals
► Keyboard and mouse remote control support
► Local HDMI loop-out on transmitter
► Built-in EDID for wide display compatibility
► POC unilateral power supply (requires only one 12V power adapter for TX)
► Compliant with HDMI 1.3 and HDCP 1.3 standards
► IEEE-568B Ethernet cable connection for convenient setup
► High compatibility with auto source/display matching
► Automatic adjustment system ensures smooth, clear, stable images
HDMI Extender with Loopout Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
HDMI 1.3, HDCP 1.3
|
|
Maximum Pixel Clock
|
165MHz
|
|
Max Data Rate
|
6.75Gbps
|
|
Resolution
|
Max: 1920X1080@60Hz(backward-compatible)
|
|
Connector
|
HDMI-A
|
|
Impedance
|
100Ω
|
|
USB
|
Interface
|
PC: Standard MINI-USB or PS2
K/M: Standard USB, PS2 (optional)
|
|
USB Signal
|
HID Signal
|
|
UTP
|
Interface
|
RJ45
|
|
Transmission Distance
|
CAT6 Max: 60m
|
|
Other
|
Power Supply
|
DC 12V
|
|
Power Dissipation
|
Max: 4W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension
|
82*85*17mm
|
|
The warranty
|
1 Year Free Warranty
|
HDMI Extender with Loopout Ordering Information
|
Part No
|
Description of product
|
|
LNK-HDE-60KVM
|
60M 1080P HDMI KVM Extender With Loop-out
|
HDMI Extender with Loopout Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
