4K@60HZ HDMI Extender 60M with Loopout & Dual IR
HDMI Extender with Loopout Overview

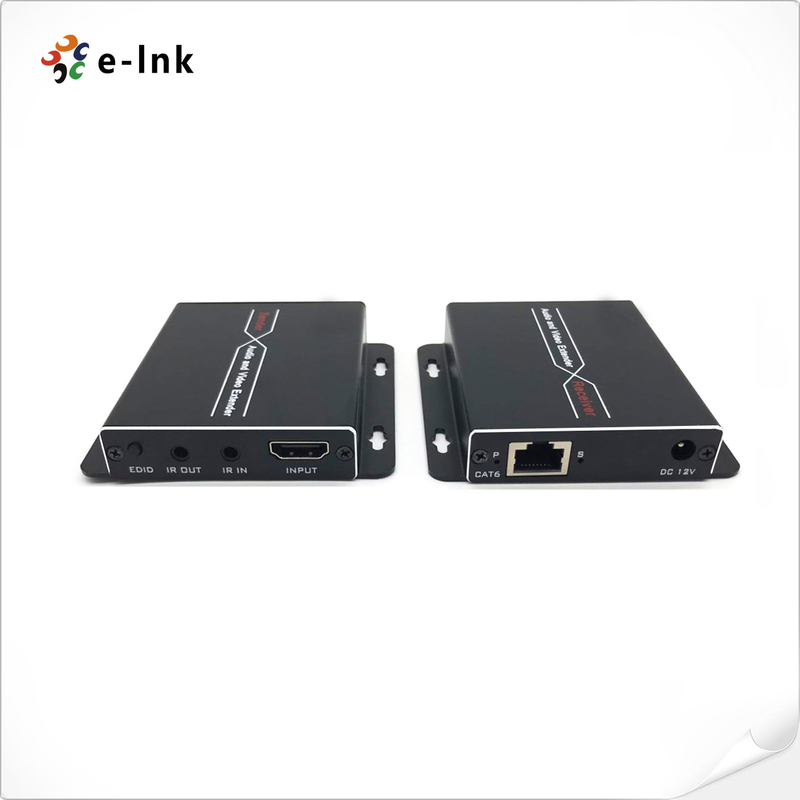

This HDMI Extender Kit includes a transmitter (TX) and a receiver (RX), which work together to transmit
uncompressed Full HD and 4K@60Hz HDMI signals over a single CAT6/6A/7 cable. With zero latency
and a range of up to 60 meters, the kit ensures high-quality video and audio transmission.
The kit supports keyboard/mouse control (KVM) and local loop-out, making it ideal for conference
systems, video production, educational settings, and digital signage. Offering exceptional compatibility,
easy installation, and reliable performance, this kit is a cost-effective solution for professional
and commercial AV applications.
HDMI Extender with Loopout Features
► Durable aluminum alloy housing, compact and wall-mountable design with strong anti-interference
► Uncompressed HDMI video/audio transmission up to 60m via single CAT6a/7 cable
► Supports resolutions up to 3840×2160@60Hz and 3D signals
► Bi-directional wideband IR transmission and local loop-out on sender
► Built-in EDID, ESD protection, and automatic adjustment for clear, stable images
► High compatibility with automatic source and display matching
HDMI Extender with Loopout Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
HDMI2.0; HDCP 2.2
|
|
Maximum pixel clock
|
340MHz
|
|
Maximum data rate
|
18Gbps
|
|
Maximum resolution
|
3840*2160@60Hz (backward-compatible)
|
|
Connector
|
HDMI-A
|
|
Impedance
|
100Ω
|
|
IR
|
Interface
|
3.5mm earphone seat
|
|
Signal direction
|
Bi-directional
|
|
Signal type
|
Digital
|
|
IR frequency
|
20-60kHz
|
|
UTP
|
Interface
|
RJ45 (IEEE - 568b connection)
|
|
Transmission distance
|
CAT6-60M
|
|
Other
|
Power supply
|
The power adapter: DC 5V/1A
|
|
Power dissipation
|
MAX 3W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension
|
82*65*17mm
|
|
The warranty
|
1 year free warranty
|
HDMI Extender with Loopout Ordering Information
|
Part No
|
Description of product
|
|
LNK-H4KE-60
|
4K@60HZ HDMI Extender 60M With Loopout & Dual IR - 197 ft (60m
|
HDMI Extender with Loopout Application
