HDMI Extenders over RG6 Coaxial Cable

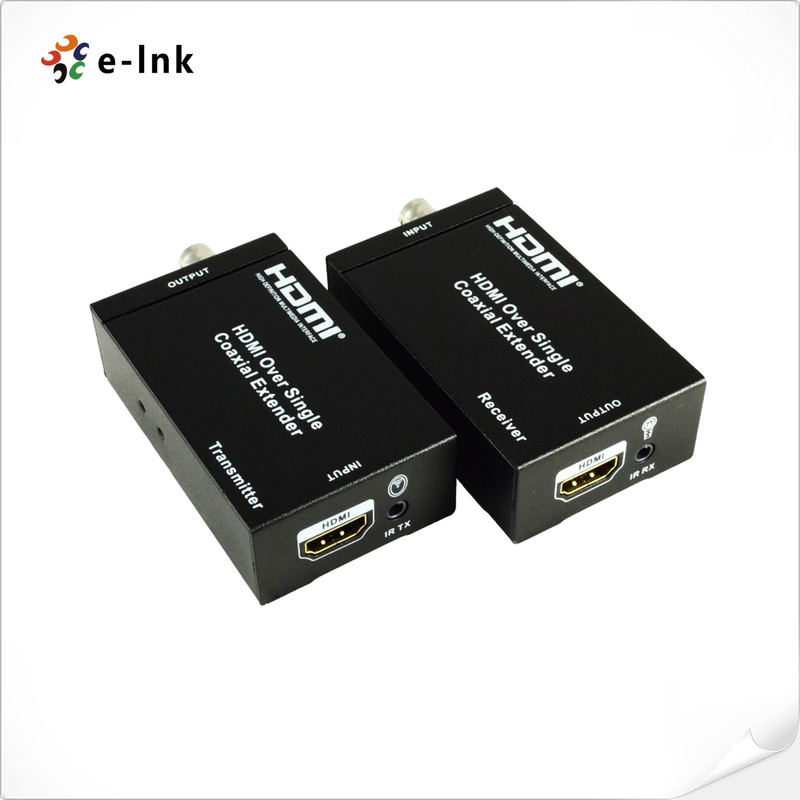

HDMI over Coaxial Cable Extender Overview
The E-Link HDMI Extender over Coaxial transmits high-quality HDMI and IR signals up to 100 meters
(328 feet) using a single 75-ohm RG-6U coaxial cable. It is compatible with HDMI 1.2/1.3 and supports
Deep Color and 1080p resolution. This makes it ideal for DVR systems, CCTV cameras, DVD players,
and home theater setups. This cost-effective solution is a reliable, flexible alternative to heavy copper
and fragile fiber optic cables. It ensures easy installation and robust performance for professional
and residential AV applications.
HDMI over Coaxial Cable Extender Features
►HDMI Extender over Coaxial Cable with IR Remote Control
►Transmits HDMI + IR signals over a single 75Ω coaxial cable up to 100m (328ft)
►Compliant with HDMI 1.3 and HDCP 1.1 standards
►Supports digital video formats in Deep Color mode up to 36-bit (12 bits/color) and 48kHz LPCM digital audio
►Built-in equalization and signal recovery ensure high-quality re-transmission, regardless of input signal quality
►Advanced Super IR control system with bidirectional IR transport (forward or backward)
HDMI over Coaxial Cable Extender Technical Indexes
|
Input
|
(TX) 1xHDMI; (RX) 1xBNC + 1x3.5mm
|
|
Output
|
(TX) 1xBNC + 1x3.5mm; (RX) 1xHDMI
|
|
HDMI connector
|
Type A 19 pin female
|
|
BNC connector
|
BNC Jack
|
|
3.5mm connector
|
(TX and RX) IR Receiver/IR Blaster
|
|
HDCP Compliance
|
Yes
|
|
Video Bandwidth
|
Single-link 225Mhz [3Gbps]
|
|
Video Support
|
720p/1080i/1080p @60
|
|
Audio Support
|
PCM (up to 7.1 ch) 48KHz
|
|
Transmission Range
|
HD [1080p 36-bit color] – up to 100m [328ft]
|
|
Coaxial Cable
|
RG6
|
|
Maximum Input Cable Length
|
24AWG (15m), 26AWG (10m), 28AWG (5m)
|
|
Maximum Output Cable Length
|
24AWG (15m), 26AWG (10m), 28AWG (5m)
|
|
HDMI Equalization
|
Auto
|
|
Input TMDS Signal
|
3.3 volts
|
|
Input DDC Signal
|
5.0 volts/P-P
|
|
Power Supply
|
1A@5VDC (2 adapters) (2.1mm plug)
|
|
Power consumption
|
2 watts
|
|
ESD Protection (Human Body Model)
|
±8kV (air-gap discharge),
±4kV (contact discharge)
|
|
PCB stack-up
|
4 layouts
|
|
Housing
|
Metal enclosure
|
|
Operating Temperature
|
32º~104º F (0º~40º C)
|
|
Operating Humidity
|
20~90% RH (no condensation)
|
|
Dimensions
|
80 x 41 x 25 mm
|
|
Weight
|
150g
|
HDMI over Coaxial Cable Extender Ordering Information
|
Model
|
Description
|
|
LNK-HC100
|
HDMI Extenders over Single RG6 Coaxial Cable up to 100m/328ft Support IR Remote Control
|
HDMI over Coaxial Cable Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
