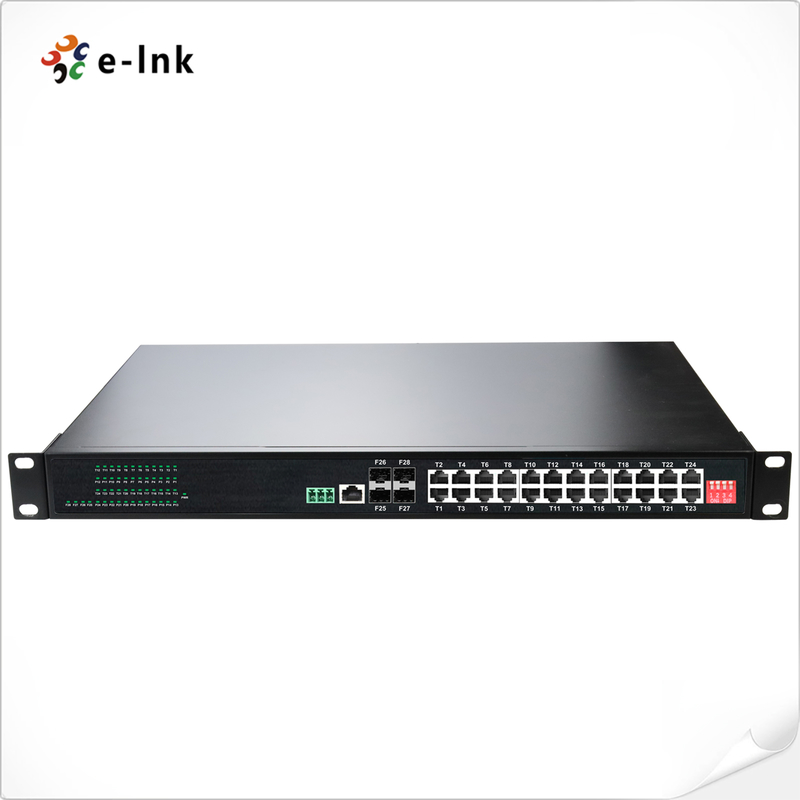

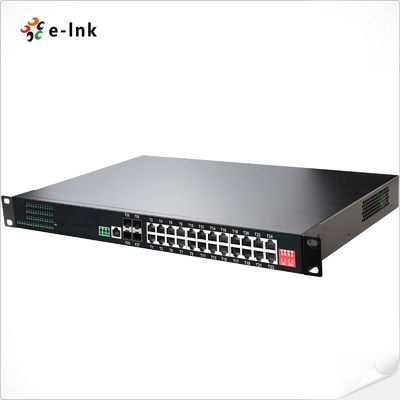

Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
Industrial Managed Ethernet Switch Overview
The ETH-IMC2424M Series is a ruggedized, L2+ managed, rack-mount Ethernet switch with
24 10/100/1000Base-T RJ45 ports and 4x 1000Base-X SFP fiber slots. Designed
for industrial environments, the ETH-IMC2424M delivers reliable network integration,
flexible fiber connectivity (single-mode and multi-mode), and advanced management capabilities.
Its hardened design and plug-and-play deployment make it ideal for connecting network devices
like IP cameras and wireless access points in harsh conditions and remote locations.
Industrial Managed Ethernet Switch Features
►Equipped with 24×10/100/1000Base-T RJ45 ports and 4×1000Base-X SFP slots
►RJ45 ports support 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDIX
►USB-C management port for easy configuration, eliminating the need for RS232 serial access
►Supports 10K Jumbo Frames for efficient high-volume data transfer
►Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
►Rugged IP40-rated aluminum housing for durability in demanding environments
►Compatible with 1U 19” rackmount installation for flexible deployment
►Wide operating temperature range: -40°C to 80°C (-40°F to 176°F)
Industrial Managed Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3p QoS
|
|
IEEE802.1d Spanning Tree
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
12M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
110Gbps
|
|
Max Packet Length:
|
10K Bytes Jumbo Frame
|
|
Address Table Size:
|
8K MAC Addresses
|
|
Interface
|
|
Connector:
|
24 x RJ45
|
|
RS485:
|
1 x RS485 (Optional)
|
|
Optical Port:
|
4 x 1000Base-X SFP
|
|
USB-C:
|
1 x USB-C (for Management)
|
|
RS485 Serial Interface (Optional)
|
|
Physical interface
|
Industrial standard 3-pin screw terminal
|
|
Data type
|
1Ch RS485 Bi-Direction
|
|
RS-485 signals
|
Data+, Data-, GND
|
|
Serial port line distance (copper)
|
1000 meters
|
|
Baud rate
|
0 ~ 800kbps
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
15W Max.
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 4
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber:
|
Gigabit SFP Port: F25~F28
|
|
Dimensions (L x W x H):
|
440mm x 300mm x 45mm
|
|
Weight:
|
3.5Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
Rackmount
|
|
Software Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Advance Layer 2+ Features
|
IPv4/IPv6 Management
Static Route
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Industrial Managed Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ETH-IMC2424M
|
Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Rackmount Installation
|
|
Power Options
|
► Industrial Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
